An Introduction to Sintered Alnico Magnets
Sintered Alnico magnets represent a specific class of the Alnico family, distinguished by their manufacturing process. While sharing the same base elements of Aluminum, Nickel, and Cobalt, their powdered metallurgical production method gives them distinct advantages, particularly in terms of dimensional precision and mechanical strength. This makes them the preferred choice for applications requiring complex shapes and tight tolerances.

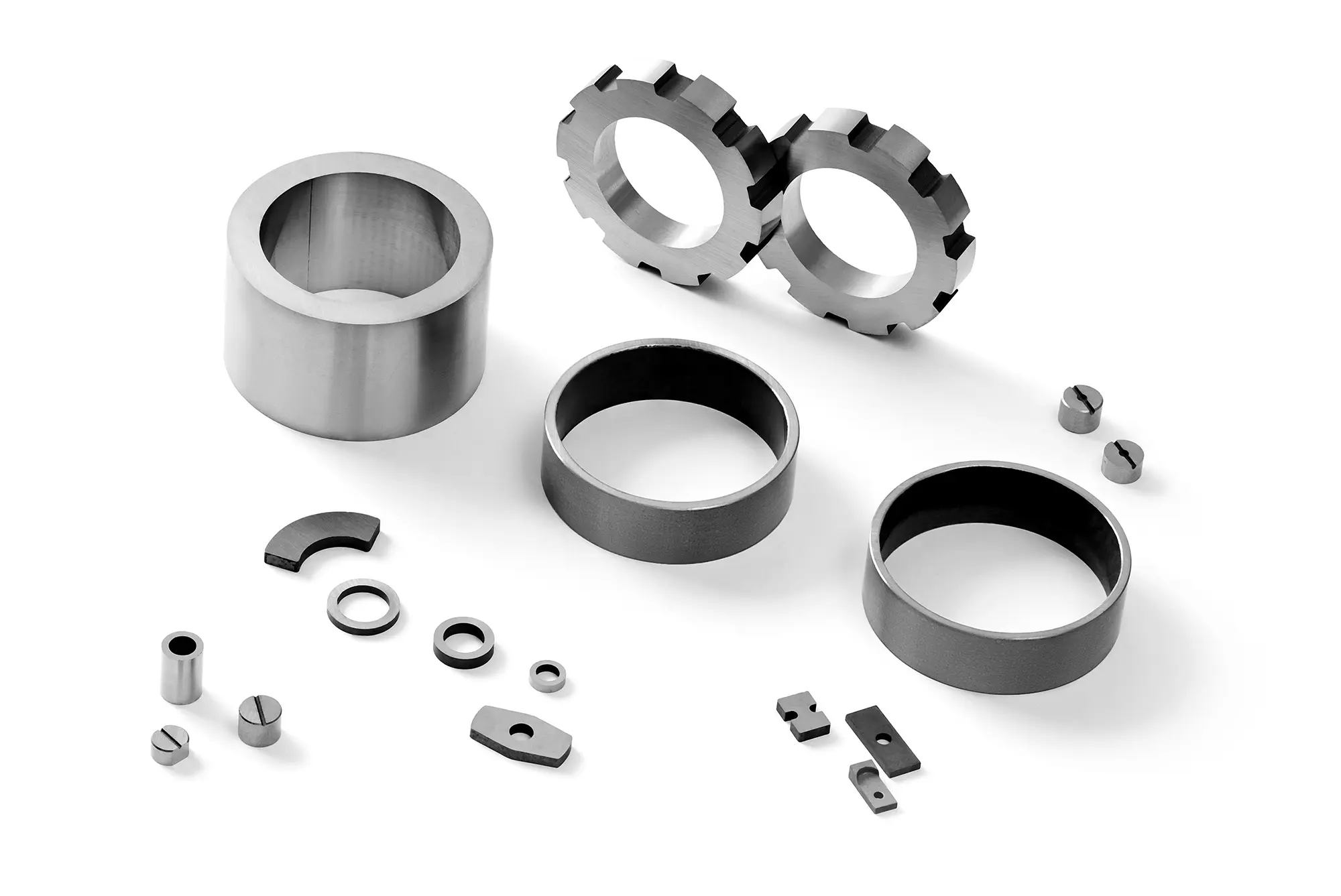

What is a Sintered Alnico Magnet?
Sintered Alnico magnets are created through a powder metallurgy process, which is an alternative to the traditional casting method. The process involves pressing fine Alnico alloy powder into a die, then heating it to a high temperature just below the melting point. This “sintering” process fuses the powder particles together, resulting in a solid, dense magnet.
The powdered metallurgy technique allows for the production of magnets with more complex geometries and smaller sizes than cast magnets, which are limited by the casting process.
Properties and Advantages of Sintered Alnico
Sintered Alnico magnets share many of the same magnetic properties as their cast counterparts, but with some key distinctions arising from the manufacturing process:

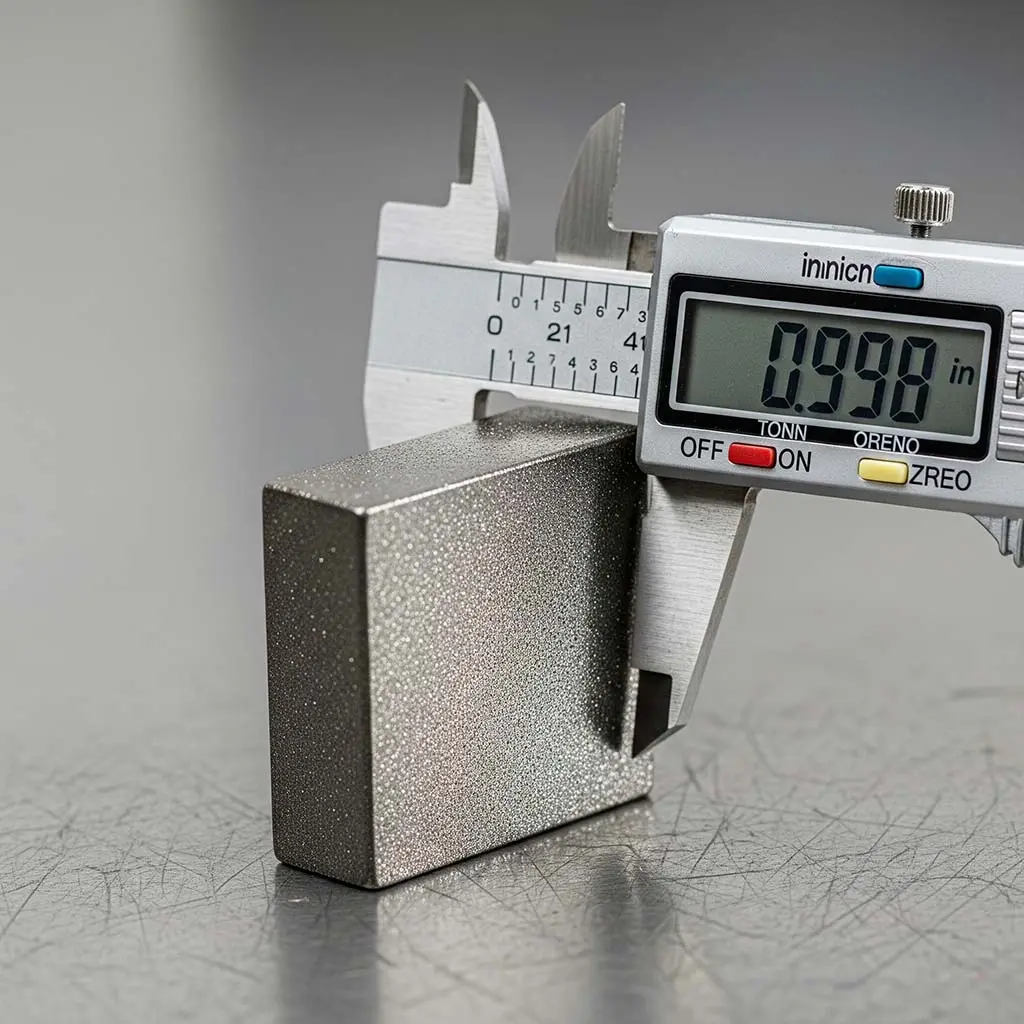

- Tighter Dimensional Tolerances: The sintering process allows for the creation of intricate shapes and smaller magnets with exceptional dimensional accuracy, which is difficult to achieve with casting.
- Higher Mechanical Strength: Sintered magnets are generally stronger and less brittle than cast magnets, making them more durable and less prone to chipping.
- Uniformity: The powder metallurgy process results in a more homogeneous magnetic structure, leading to more uniform magnetic properties throughout the magnet.
- High Temperature Stability: Like all Alnico magnets, the sintered variety performs exceptionally well at high temperatures, retaining its magnetic properties up to 550°C (1022°F).
- Good Corrosion Resistance: Sintered Alnico, like cast Alnico, has excellent resistance to corrosion and does not require a protective coating.

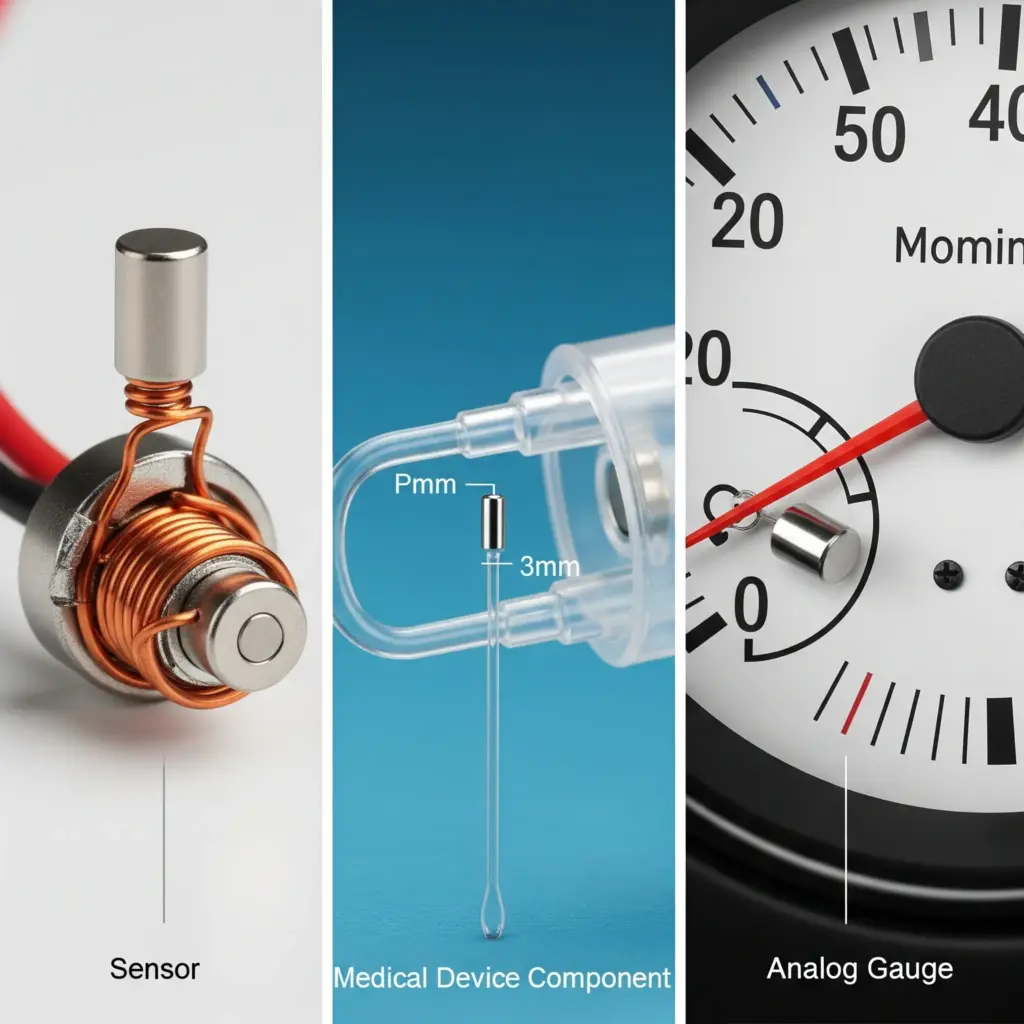

Common Applications of Sintered Alnico Magnets
The precision and durability of sintered Alnico make it ideal for a variety of applications, especially those that are smaller in scale or require high accuracy:
- Sensors: Used in proximity sensors, position sensors, and anti-lock braking systems (ABS).
- Medical Devices: Components in medical instruments and equipment.
- Instrumentation: Found in analog meters, gyroscopes, and other precision measuring devices.
- Electronics: Used in switches, relays, and other small electronic components.
