AlNiCo magnets, composed primarily of aluminum, nickel, cobalt, and iron, are known for their excellent temperature stability and corrosion resistance, making them ideal for high-heat environments up to 500°C or more. They come in two main forms based on manufacturing: cast and sintered. Understanding the differences can help in selecting the right type for specific applications, such as sensors, electric motors, guitar pickups, or holding devices. Cast AlNiCo is produced by melting the alloy and pouring it into molds, while sintered AlNiCo involves pressing metal powders into shape and heating them below the melting point to fuse. These processes lead to variations in magnetic performance, mechanical durability, production feasibility, and cost. Below, I’ll break down the key differences and reasons to choose one over the other.
Table of Contents

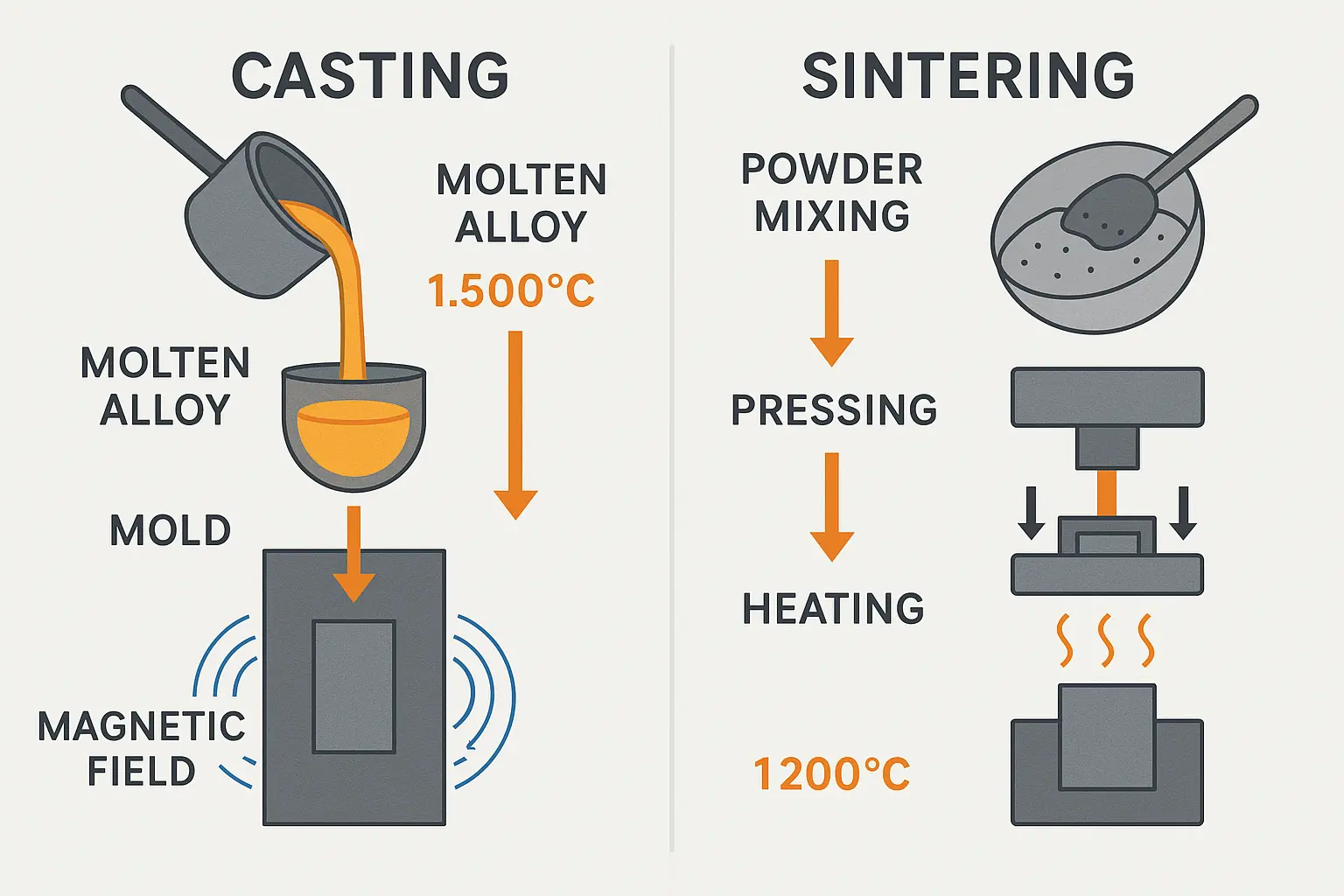

Manufacturing Differences
The production method is the core distinction and influences everything from shape flexibility to scalability.
- Cast AlNiCo: Involves melting the raw materials at high temperatures (around 1,500–1,600°C) and casting them into sand or metal molds. This allows for anisotropic (directionally magnetized) orientations during cooling in a magnetic field, enhancing performance. It’s the traditional method and suits larger or simpler shapes but can introduce inconsistencies like porosity if not controlled.
- Sintered AlNiCo: Uses powdered metallurgy—fine alloy powders are mixed, pressed into dies under high pressure (up to 100,000 psi), and sintered at 1,200–1,300°C in a controlled atmosphere. This results in near-net-shape parts with minimal machining needed.
Reasons to Choose:
- Opt for sintered if you need complex geometries (e.g., intricate sensor housings) or high-volume production, as it’s more efficient for mass manufacturing.
- Choose cast for larger magnets or when precise magnetic alignment is critical, as it’s the only viable method for big pieces.
Magnetic Properties Comparison
Magnetic strength is often the deciding factor, with cast generally outperforming sintered.
| Property | Cast AlNiCo | Sintered AlNiCo | Notes |
|---|---|---|---|
| Energy Product (MGOe) | 4.25–10 (anisotropic grades) | 4.45–5.5 | Cast offers higher flux density for demanding applications. |
| Remanence (Br, in Gauss) | Up to 13,500 | Up to 10,500 | Higher in cast, better for holding strong fields. |
| Coercivity (Hc, in Oersteds) | 500–2,000 | 500–1,800 | Similar, but cast can achieve higher in premium grades. |
| Density | Higher (around 7.3 g/cm³) | Lower (around 6.9 g/cm³) | Sintered’s lower density can reduce weight in designs. |
| Temperature Coefficient | -0.02%/°C (typical for AlNiCo 5) | Similar | Both excel in heat stability, but cast is more common in extreme temps. |
Reasons to Choose:
- Select cast for applications needing maximum magnetic strength, like in electric guitar pickups or high-power motors, where higher remanence translates to better performance.
- Go with sintered if moderate strength suffices and uniformity is key, such as in precision instruments where consistent properties across batches matter more than peak power.
Mechanical Properties and Durability
AlNiCo magnets are inherently brittle, but sintering improves toughness.
- Cast AlNiCo: More prone to cracking or chipping due to casting stresses. Lower tensile strength (around 5,000–10,000 psi) and transverse rupture strength.
- Sintered AlNiCo: Offers superior mechanical integrity with higher tensile strength (up to 20,000 psi) and better resistance to breakage. Less porosity and more isotropic structure in some cases.
Reasons to Choose:
- Prefer sintered for mechanically demanding environments, like automotive sensors exposed to vibration, where structural strength prevents failure.
- Use cast when magnetic performance outweighs fragility, and the magnet can be protected (e.g., encased in assemblies).
Cost and Production Difficulties
Economics play a big role in selection.
- Cast AlNiCo: Higher tooling costs for molds and more energy-intensive due to full melting. Better for low-to-medium volumes but can be pricier for complex or small parts. Production difficulties include managing cooling rates to avoid defects.
- Sintered AlNiCo: Lower overall cost, especially for high volumes, with less waste and faster cycles. Easier to produce intricate shapes without extensive post-processing, but powder handling requires controlled environments to prevent oxidation.
Reasons to Choose:
- Choose sintered for cost-sensitive, large-scale projects like consumer electronics or automotive parts, where economies of scale reduce per-unit price.
- Opt for cast if the application demands superior properties that justify the expense, such as in aerospace or specialized instruments.
Applications and Real-World Examples
- Cast AlNiCo: Commonly used in high-performance scenarios like electric motors, generators, loudspeakers, and magnetic separators. For instance, in guitar pickups, cast AlNiCo 5 provides the warm tone and high output preferred by musicians. It’s also prevalent in holding magnets for industrial tools due to stronger fields.
- Sintered AlNiCo: Ideal for compact devices like meters, relays, and medical equipment where shape complexity and durability are priorities. In automotive speedometers or thermostats, sintered versions handle vibrations better while maintaining sufficient magnetism.
Reasons to Choose:
- If your application involves extreme temperatures or needs the strongest possible field (e.g., aerospace sensors), cast is often the go-to, as it’s more widely used and proven in such roles.
- For mass-produced items with custom shapes (e.g., electronic switches), sintered reduces costs and improves reliability.
Conclusion: Making the Right Choice
When deciding between cast and sintered AlNiCo, weigh your priorities: cast excels in magnetic prowess and is suited for high-strength needs, while sintered shines in mechanical robustness, cost-efficiency, and design flexibility. For a blog post, emphasize real-world trade-offs—e.g., “If you’re designing a vintage-style guitar pickup, cast AlNiCo’s superior tone might win out, but for a rugged automotive sensor, sintered’s durability could save on replacements.” Always test prototypes, as factors like exact grade (e.g., AlNiCo 5 vs. 8) can fine-tune the decision. Both types share AlNiCo’s hallmark heat resistance, so the choice often boils down to balancing performance, budget, and manufacturability.
