Author: Jacky Wang

  • Gaussmeter vs. Demagnetization Curve – Which Is Better for Measuring AlNiCo Magnets?

    Gaussmeter vs. Demagnetization Curve – Which Is Better for Measuring AlNiCo Magnets?

    AlNiCo magnets are known for their excellent temperature stability, high residual induction, and long service life. Whether you are manufacturing motors, sensors, or measuring instruments, understanding their magnetic performance is key.

    When it comes to testing AlNiCo magnets, two common tools are:

    1. Gaussmeter (Tesla meter) – Measures surface magnetic field strength.
    2. Demagnetization curve (B-H curve) testing – Measures the complete magnetic property data of a material.

    While both methods are useful, they serve different purposes.

    Table of Contents

    1. What a Gaussmeter Does

    A Gaussmeter measures surface flux density at a specific point, usually in units of Gauss (G) or Tesla (T). It is quick and easy to use, making it ideal for:

    • Incoming quality checks – Ensuring magnets are magnetized correctly.
    • Field service – Checking whether a magnet has weakened over time.
    • Sorting – Separating stronger and weaker magnets in production.

    Limitations for AlNiCo:

    • Not a full picture – A single surface field reading doesn’t tell you coercivity, remanence, or the full energy product.
    • Shape and size effect – Irregular shapes cause uneven fields, leading to variation in readings.
    • Measurement direction – AlNiCo’s anisotropy means the reading changes if the probe is not aligned with the magnetization axis.
    Gaussmeter measuring surface flux density on AlNiCo magnet

    2. What a Demagnetization Curve Does

    A demagnetization curve (B-H curve) test applies a controlled reverse magnetic field to the magnet and measures how it loses and regains magnetization.

    It provides full magnetic characteristics, such as:

    • Br (remanence) – Magnet’s residual flux after full magnetization.
    • Hc (coercivity) – Resistance to demagnetization.
    • (BH)max – Maximum energy product.
    • Full hysteresis loop – Showing magnetization, demagnetization, and re-magnetization behavior.

    Advantages for AlNiCo:

    • Complete data – Useful for research, design, and quality control.
    • Independent of magnet shape – Unlike a Gaussmeter, it’s not affected by surface geometry as much.
    • Identifying material grade – The curve can confirm if a magnet meets the specification of AlNiCo 5, AlNiCo 8, etc.
    B-H demagnetization curve for AlNiCo magnet showing remanence and coercivity

    3. Which Should You Use?

    • For quick checks or field measurements: Use a Gaussmeter.
    • For full performance evaluation, grade verification, or R&D: Use a demagnetization curve test.

    Conclusion

    Gaussmeters are fast and convenient, but their readings can be influenced by shape, alignment, and surface effects — especially with anisotropic materials like AlNiCo. A demagnetization curve test, while slower and requiring specialized equipment, provides a complete and reliable assessment of the magnet’s properties, making it essential for critical design work or quality control.

    In short:

    • Gaussmeter = Quick surface strength check.
    • Demagnetization curve = Complete magnetic profile.
  • The Application of Magnets in Welding Machinery

    The Application of Magnets in Welding Machinery

    Magnets are an unsung hero in welding workshops. Whether for holding, aligning, or even assisting in advanced joining methods, magnets simplify welding operations, improve accuracy, and boost efficiency. In welding, magnets are used both as raw magnetic materials (inside machines or fixtures) and as finished magnetic tools designed for welders.

    Table of Contents

    1. Why Magnets Are Essential in Welding

    Welding often involves handling large or awkwardly shaped steel parts. Traditional clamps can be slow to set up, and even small misalignments can ruin a weld. Magnets provide:

    • Quick fixation without drilling holes or tightening bolts
    • Precise positioning at exact angles
    • Hands-free operation, letting welders focus on the weld itself

    2. Types of Magnets Used in Welding

    Different magnet types are chosen based on strength, heat resistance, and cost:

    • Neodymium Magnets (NdFeB): Extremely strong, compact, and ideal for holding heavy or large workpieces securely. Best for applications where maximum magnetic force is needed in a small space.
    • Ferrite (Ceramic) Magnets: More affordable and heat resistant, suitable for lighter holding tasks or where cost is a concern.
    • AlNiCo Magnets: Good temperature stability, often used in magnetic sensing or positioning inside welding machinery.

    3. Magnetic Tools & Devices in Welding Operations

    a. Magnetic Welding Clamps

    Hold workpieces at 45°, 90°, or 135° angles without slipping. Perfect for tack welding frames, gates, or sheet metal structures.

    b. Magnetic Angle Finders & Positioning Blocks

    Allow precise setup of weld joints, reducing human error and ensuring square corners.

    c. Magnetic Welding Tables

    Tables with built-in magnets secure parts anywhere on the surface, making setups faster and more flexible.

    d. Magnetic Torch & Rod Holders

    Keep welding torches or filler rods in place, especially in tight or vertical positions.

    e. Magnetic Fixtures for Distortion Control

    Hold workpieces steady against thermal movement, preventing warping during long welds.

    Magnetic welding clamp holding workpiece at 90 degrees

    4. Advanced Magnet-Based Welding Methods

    Magnetic Pulse Welding (MPW)

    A solid-state welding technique where a powerful magnetic field accelerates metal pieces together at high speed, bonding them without melting. NdFeB magnets are key for generating the required electromagnetic force.

    Robotic Welding Systems

    In automated setups, magnets inside robotic grippers enable fast pickup, positioning, and release of steel components.

    5. Why Neodymium Magnets Are Game-Changers in Welding

    Neodymium magnets are preferred in many welding tools because they:

    • Deliver maximum holding strength in compact designs
    • Enable faster setups compared to mechanical clamps
    • Maintain secure holding even for heavy or oddly shaped parts
    • Improve automation efficiency in robotic welding

    Conclusion

    Magnets — whether ferrite, AlNiCo, or neodymium — are indispensable in modern welding operations. From basic angle clamps to advanced magnetic pulse welding, they make the work faster, safer, and more precise. And with the unmatched power of neodymium magnets, today’s welding shops can achieve efficiency and accuracy that were once impossible.

  • Radiant Ring Magnets – Unique Radial Magnetization for Specialized Applications

    Radiant Ring Magnets – Unique Radial Magnetization for Specialized Applications

    A radiant ring magnet is a special type of circular permanent magnet that is magnetized radially along its circumference—meaning the magnetic poles are distributed outward (or inward) like spokes on a wheel, rather than through the length or thickness of the magnet. This distinctive magnetization pattern allows for highly efficient rotational magnetic fields and unique functional benefits in certain applications.

    Table of Contents

    How Radiant Ring Magnets Are Made

    The production of a radiant ring depends largely on the magnetic material type and its magnetic anisotropy.

    1. Isotropic Magnetic Materials

    Isotropic materials, such as AlNiCo 2 or isotropic bonded neodymium magnets, can be magnetized in any direction after forming. This makes them ideal for producing radiant ring magnets, since the magnetization can be applied radially in the final step.

    • Advantages: Flexible magnetization directions, simpler tooling, lower cost for small batches.
    • Examples: AlNiCo 2 rings for instrumentation, bonded NdFeB for motors and encoders.

    2. Anisotropic Magnetic Materials

    Anisotropic materials, such as sintered NdFeB or ferrite, have a preferred magnetic direction (easy axis) fixed during manufacturing. Producing a radiant ring from anisotropic material is more complex—it requires specialized pressing dies and the application of a strong external magnetic field during forming to align the crystal structure radially.

    • Advantages: Much higher energy product (stronger magnetic output).
    • Challenges: More expensive tooling, limited shape flexibility.

    Magnetic Orientation Types in Radiant Rings

    • Radial Outward Magnetization – North poles face outward around the circumference, south poles face inward.
    • Radial Inward Magnetization – South poles face outward, north poles inward.
    • Multi-Pole Radial Magnetization – Multiple alternating north and south poles around the ring, ideal for position sensing and brushless motors.
    Illustration of multi-pole radial magnetization in ring magnets

    Applications of Radiant Ring Magnets

    Radiant ring magnets are not just a curiosity—they are essential in several high-performance systems:

    1. Electric Motors & Generators
      • Brushless DC motors
      • Servo motors for robotics and CNC machines
      • Compact high-torque motors for drones and e-mobility
    2. Magnetic Couplings
      • Used in sealed pumps to transmit torque without direct contact
      • Ideal for chemical processing, food-grade systems, and vacuum equipment
    3. Precision Position Sensors & Encoders
      • Radial multi-pole rings provide accurate angular position feedback
      • Used in automotive ABS systems, industrial automation, and medical devices
    4. Magnetic Bearings
      • Enable contactless rotation in high-speed turbines and flywheels
    5. Scientific & Laboratory Equipment
      • Custom magnetic fields for particle manipulation, NMR devices, and calibration systems
    Radiant ring magnet in brushless DC motor for high-torque applications

    Why Choose Our Manufacturing Expertise

    With over 20 years of magnet manufacturing experience, we specialize in producing both isotropic and anisotropic radiant ring magnets. Whether you require small-batch precision AlNiCo rings for sensing applications or high-energy anisotropic NdFeB rings for motors, our engineers can design the right magnetization pattern to meet your performance requirements.

    We can supply:

    • Custom dimensions from micro-rings to large-diameter assemblies
    • Single-pole or multi-pole radial magnetization
    • Material selection from AlNiCo, bonded NdFeB, ferrite, or sintered NdFeB
    • Protective coatings such as Ni-Cu-Ni, epoxy, or Parylene

    Conclusion

    Radiant ring magnets offer unique magnetic field distributions that unlock performance advantages in motion systems, coupling devices, and precision instruments. By understanding the differences between isotropic and anisotropic materials, engineers can choose the optimal design for their application—and with the right manufacturing partner, even the most challenging radial magnetization patterns are possible.

  • SmFeN Magnets: The New Generation of Rare Earth Magnets

    SmFeN Magnets: The New Generation of Rare Earth Magnets

    In the world of permanent magnets, new materials don’t appear very often. For decades, NdFeB (Neodymium Iron Boron) and SmCo (Samarium Cobalt) have dominated the high-performance magnet market. But in recent years, a promising newcomer—Samarium Iron Nitride (SmFeN)—has been gaining attention for its unique combination of high magnetic performance, corrosion resistance, and thermal stability.

    SmFeN magnets are seen as one of the most exciting developments in the rare earth magnet field since the 1980s. Let’s explore their origin, how they’re made, how they compare to NdFeB, and what the future may hold.

    Table of Contents

    A Brief History of SmFeN Magnets

    The Sm–Fe–N magnetic compound was first studied in the late 1980s and early 1990s, when researchers discovered that introducing nitrogen into the Sm₂Fe₁₇ lattice could significantly increase its saturation magnetization and anisotropy field.

    • 1980s: Sm₂Fe₁₇ compound known, but magnetic properties not competitive with NdFeB.
    • 1991: Breakthrough nitrogenation process developed—leading to Sm₂Fe₁₇N₃.
    • 1990s–2000s: Lab-scale synthesis proved high coercivity and good corrosion resistance.
    • 2010s onward: Industrial interest grew due to Nd price volatility and demand for high-temperature magnets without heavy reliance on dysprosium.
    SmFeN Bonded Magnets

    Production Process of SmFeN Magnets

    Manufacturing SmFeN magnets involves more steps than traditional NdFeB, mainly due to the nitrogenation process:

    1. Alloy Preparation
      • Samarium and iron are alloyed (often via strip casting or gas atomization) to produce Sm₂Fe₁₇ powder.
    2. Nitrogenation
      • The alloy powder is heated under high-purity nitrogen gas at around 500–600 °C.
      • Nitrogen atoms diffuse into the lattice, forming Sm₂Fe₁₇Nₓ (typically x ≈ 3).
      • This step enhances anisotropy and remanence without significantly reducing Curie temperature.
    3. Powder Handling
      • Because the nitrogenated powder is prone to decomposition at high temperatures, low-temperature processing is critical.
    4. Magnet Formation
      • Bonded magnets: SmFeN powder is mixed with polymer binders and formed via compression or injection molding.
      • Sintered magnets: More challenging due to nitrogen loss during sintering; research continues to improve this step.
    5. Coating / Protection
      • Although corrosion resistance is better than NdFeB, coatings (epoxy, PVD, etc.) are often applied for harsh environments.

    SmFeN vs. NdFeB: Key Comparisons

    PropertySmFeNNdFeB
    Maximum Energy Product (BHmax)~30–40 MGOe (bonded), higher in research samples35–55 MGOe (sintered)
    Temperature StabilityExcellent, retains magnetism above 200 °CStandard grades lose strength above 80–120 °C; high-temp grades require Dy/Tb
    Corrosion ResistanceGood, less prone to oxidationPoor without coating
    Raw Material Supply RiskSamarium supply more stable; less dependence on heavy rare earthsHeavy reliance on Nd, Dy, Tb, prone to price volatility
    Manufacturing MaturityEmerging, still developing sintering processFully mature industrial production
    CostCurrently higher for small volumes due to limited productionEconomies of scale make NdFeB cheaper

    Advantages of SmFeN Magnets

    • High temperature stability without expensive dysprosium additions.
    • Good corrosion resistance, even without heavy coatings.
    • Stable raw material supply, especially compared to dysprosium-heavy NdFeB.
    • Low eddy current loss, making them ideal for high-frequency motors.

    Disadvantages

    • Lower peak energy product compared to the strongest NdFeB grades (today).
    • Manufacturing challenges for sintered forms due to nitrogen loss at high temperatures.
    • Less mature industrial chain, meaning higher costs for now.
    • Mechanical fragility in some bonded forms.

    Development Trends and Future Outlook

    SmFeN magnets are currently most common in bonded magnet applications, such as high-speed motors, automotive sensors, and electronics, where their stability and corrosion resistance are valued. However, the holy grail is sintered SmFeN magnets—which could rival or surpass NdFeB in certain applications without relying on heavy rare earths.

    Ongoing R&D is focused on:

    • Low-temperature sintering techniques to prevent nitrogen loss.
    • Hybrid magnets combining SmFeN with NdFeB for balanced performance.
    • Scaling production to reduce costs.

    With electric vehicles, wind turbines, and high-efficiency industrial motors demanding magnets that can handle heat, corrosion, and price volatility, SmFeN could become a major player in the next decade.

    SmFeN magnets in wind turbine for high-temperature stability

    Conclusion

    SmFeN magnets are not just another laboratory curiosity—they represent a strategic alternative to NdFeB, especially in applications where temperature stability and supply security matter most. While production challenges remain, ongoing research and the global push for rare-earth diversification could make SmFeN magnets one of the defining magnetic materials of the future.

  • Magnets for Reed Switch Activation – Design, Working Principle, and Selection Guide

    Magnets for Reed Switch Activation – Design, Working Principle, and Selection Guide

    Reed switches are widely used in sensors, security systems, and automation equipment — and at the heart of their operation is a magnet.
    As a professional magnet manufacturer and supplier, we not only understand how reed switches work, but also how to provide the right type of permanent magnet to ensure stable, reliable activation.

    In this article, we’ll explain how magnets activate reed switches, the working principle behind them, and the best magnet materials for your reed switch application.

    Table of Contents

    How a Magnet Activates a Reed Switch

    A reed switch consists of two ferromagnetic blades (reeds) sealed inside a small glass tube. These blades are slightly separated and plated with hard metals for durability. When exposed to a magnetic field, the blades become magnetized and attract each other, closing the circuit.

    Activation process:

    1. Magnetic field introduction – A permanent magnet or an electromagnetic coil creates a magnetic field around the reed switch.
    2. Magnetization of blades – The reeds gain opposite magnetic poles.
    3. Contact and conduction – The blades attract each other, closing the circuit.
    4. Return to open state – Removing the magnetic field lets the reeds spring apart, breaking the circuit.

    For most applications, permanent magnets are preferred because they are compact, reliable, and require no electrical power to operate.

    Step-by-step illustration of magnet activating reed switch

    Best Permanent Magnets for Reed Switch Activation

    Choosing the right magnet is critical for reed switch performance. Here’s a guide to the most common materials:

    1. NdFeB (Neodymium Iron Boron) Magnets

    • Features: Extremely strong magnetic performance in a compact size.
    • Advantages: High remanence, high coercivity, ideal for space-limited designs.
    • Applications: Security sensors, high-precision electronics, automation systems.
    • Considerations: Sensitive to high temperatures and moisture — surface coatings are recommended.

    2. Ferrite (Ceramic) Magnets

    • Features: Cost-effective, good corrosion resistance.
    • Advantages: Stable magnetic performance, low price, ideal for mass-market products.
    • Applications: Door and window magnetic sensors, general reed switch uses.
    • Considerations: Lower magnetic strength compared to NdFeB; requires larger size for same activation distance.

    3. Samarium Cobalt (SmCo) Magnets

    • Features: Excellent temperature and corrosion resistance.
    • Advantages: Maintains stability in high-temperature and harsh environments.
    • Applications: Aerospace, military, and industrial reed switch systems.
    • Considerations: Higher cost than other magnet types.

    4. Alnico Magnets

    • Features: High remanence, stable performance over a wide temperature range.
    • Advantages: Good for applications with frequent temperature changes.
    • Applications: Special instrumentation and sensors.
    • Considerations: Lower resistance to demagnetization; not ideal in strong external magnetic fields.
    Reed switch magnets in security and automation systems

    Why Choose Us as Your Reed Switch Magnet Supplier

    We manufacture and supply a full range of NdFeB, Ferrite, SmCo, and Alnico magnets tailored for reed switch activation.
    Whether you need miniature high-precision magnets for compact sensors or durable, high-temperature magnets for industrial applications, we can provide:

    • Custom shapes and sizes for optimal activation distance.
    • Special coatings to improve corrosion resistance.
    • Consistent magnetic performance through precision manufacturing.
    • Technical support to help you select the right magnet for your reed switch design.

    Conclusion

    A reed switch is only as reliable as the magnet that activates it. By choosing the right magnet material and specifications, you can ensure stable operation, long service life, and consistent performance in your application.

    If you’re looking for high-quality magnets for reed switch activation, contact us today — we’re here to help you design and supply the perfect solution for your needs.

  • Neodymium Magnets in Aquariums and Saltwater Applications

    Neodymium Magnets in Aquariums and Saltwater Applications

    Neodymium magnets, also known as rare-earth magnets, are among the most powerful permanent magnets available today. Thanks to their exceptional strength, compact size, and versatility, they have become a popular choice for various aquarium and saltwater tank applications.

    As a leading neodymium magnet manufacturer, we supply magnets that are widely used in the aquarium industry, from cleaning tools to coral mounting systems. In this article, we’ll explore how neodymium magnets are used in aquariums and why their high performance makes them ideal for saltwater environments—when properly protected.

    Table of Contents

    Why Use Neodymium Magnets in Aquariums?

    Traditional methods such as suction cups or adhesive mounts often fail in aquariums due to water pressure, algae growth, and the corrosive nature of saltwater. Neodymium magnets provide a reliable, reusable, and adjustable alternative, enabling secure attachment and easy repositioning of tools and decorations.

    Common Applications of Neodymium Magnets in Aquariums

    1. Magnetic Algae Scrapers

    One of the most well-known uses of neodymium magnets in aquariums is in magnetic algae scrapers. These tools consist of two parts—one placed inside the tank and one outside. The powerful magnetic force allows you to clean algae from glass or acrylic surfaces without putting your hands in the water. This is particularly important in saltwater aquariums, where algae growth can be rapid.

    Magnetic algae scraper using neodymium magnets in saltwater tank

    2. Magnetic Coral Frag Holders

    Coral frag holders allow aquarists to place and rearrange coral frags without drilling or permanently altering the aquarium. Using strong neodymium magnets, these holders keep coral frags securely in place, even in tanks with strong currents, while allowing for easy adjustments.

    3. Magnetic Tank Cleaners

    Beyond algae scrapers, there are full magnetic cleaning tools designed for general tank maintenance. They enable cleaning of glass and acrylic surfaces from the outside, removing debris and buildup efficiently while keeping hands dry.

    4. Magnetic Fish Feeders

    Some advanced aquarium setups use magnet-mounted fish feeders to deliver food to a specific spot in the tank. This targeted feeding helps prevent overfeeding, reduces waste, and ensures all fish get their share.

    5. Magnetic Rocks and Decorations

    Hobbyists often use neodymium magnets to anchor rocks or decorative elements in aquariums. This keeps layouts stable despite fish movement or strong water flow—especially important in reef tanks.

    6. Magnetic Mounts for Equipment

    Neodymium magnets are also used to mount aquarium equipment such as heaters, sensors, or filtration systems. They provide a secure hold without drilling, adhesives, or suction cups, and equipment can be repositioned quickly without damage.

    Neodymium magnets for aquarium equipment mounting and decorations

    Important Considerations

    While neodymium magnets are extremely powerful, they require protective coatings such as epoxy, plastic, or rubber to prevent corrosion—especially in saltwater tanks. As a manufacturer, we offer custom-coated neodymium magnets specifically designed for aquarium applications, ensuring both durability and safety.

    Handling tips:

    • Keep fingers clear when connecting large magnets to avoid pinching.
    • Avoid uncoated magnets in saltwater environments.
    • Choose the correct magnet strength to prevent glass damage.

    Supplying Neodymium Magnets for Aquarium Applications

    At HS Magnet, we manufacture and supply high-quality neodymium magnets in various shapes, sizes, and coatings, tailored for aquarium use. Whether you need magnets for algae scrapers, coral mounts, or custom aquarium equipment, we can provide OEM and bulk solutions with competitive pricing and consistent quality.

    Contact us today to discuss your aquarium magnet needs and get a quote for your next project.

  • Magnets for High-Speed Magnetic Rotor Assemblies: A Complete Guide

    Magnets for High-Speed Magnetic Rotor Assemblies: A Complete Guide

    High-speed magnetic rotor assemblies are the heart of many advanced electric machines — from electric vehicle motors to aerospace actuators. At HS Magnet, we work closely with motor designers to supply high-performance magnets and complete rotor assemblies that meet extreme speed, efficiency, and durability demands.

    In this article, we’ll explain what magnetic rotors are, why the choice of magnet material is critical, and the most common magnetic materials used in high-speed rotor assemblies.

    Table of Contents

    What is a Magnetic Rotor Assembly?

    A magnetic rotor is the rotating component in a motor or generator that contains permanent magnets. When paired with a stator, the rotor’s magnetic field interacts with the stator’s windings to produce motion or generate electricity.

    In high-speed magnetic rotor assemblies, the magnets must withstand:

    • High rotational speeds — often exceeding 50,000 RPM
    • High temperatures — due to electrical and mechanical losses
    • Strong centrifugal forces — which can place stress on magnet bonds and sleeves
    • Demanding efficiency requirements — to achieve high torque and power density in a compact size

    The Role of Magnets in Rotor Performance

    The magnet material determines:

    • Magnetic field strength → affects torque and efficiency
    • Temperature tolerance → critical for preventing demagnetization at high heat
    • Corrosion resistance → important in harsh or humid environments
    • Cost-effectiveness → impacts overall motor price

    Choosing the right magnet is a balance of performance, environment, and budget.

    Common Magnet Materials for High-Speed Rotors

    Comparison chart of NdFeB, SmCo, and Ferrite magnets for rotors

    1. Neodymium Iron Boron (NdFeB) Magnets

    Key Features:

    • Strongest commercially available permanent magnet material
    • High remanence and coercivity
    • Magnetic energy product over 50 MGOe
    • Curie temperature: 310–400°C
    • Available in high-temperature grades for demanding rotor designs

    Applications:

    • Electric vehicle drive motors
    • CNC machine tool spindle motors
    • Robotics joint actuators
    • Aerospace auxiliary motors

    Why Choose NdFeB: Ideal when maximum torque density and compact size are required.

    2. Samarium Cobalt (SmCo) Magnets

    Key Features:

    • Magnetic energy product: 20–30 MGOe
    • Exceptional temperature resistance (Curie temp: 700–800°C)
    • Excellent corrosion resistance without coating
    • Stable performance in extreme environments

    Applications:

    • Aerospace motors near jet engines
    • Oilfield downhole motors
    • High-speed industrial drives in hot environments

    Why Choose SmCo: Best choice for high-temperature, corrosive, or vacuum environments where NdFeB may not survive.

    3. Ferrite (Ceramic) Magnets

    Key Features:

    • Low cost and good chemical stability
    • Magnetic energy product: 3–5 MGOe
    • High electrical resistivity → reduced eddy current loss
    • Naturally corrosion-resistant

    Applications:

    • Household appliance motors (fans, washing machines, vacuum cleaners)
    • Cost-sensitive small high-speed motors

    Why Choose Ferrite: Affordable and reliable for medium-performance, high-volume applications.

    Advanced Magnet Configurations: Halbach Arrays

    For maximum power density and efficiency, HS Magnet also designs Halbach array magnetic rotors. These arrangements concentrate magnetic flux on one side, improving motor performance while reducing weight and size.

    Factors to Consider When Selecting Magnets for Rotor Assemblies

    When designing or sourcing a magnetic rotor assembly, consider:

    • Operating speed (RPM)
    • Maximum working temperature
    • Environmental exposure (moisture, chemicals, vacuum)
    • Space constraints
    • Required torque and efficiency
    • Budget limitations

    Our engineers can simulate performance and recommend the optimal magnet grade, coating, and mechanical structure for your application.

    Flowchart for selecting magnets in high-speed rotor designs

    Partner with HS Magnet for Your Next Rotor Project

    At HS Magnet, we supply:

    • NdFeB, SmCo, and ferrite magnets in custom sizes and grades
    • Complete high-speed magnetic rotor assemblies ready for integration
    • Advanced Halbach array designs for ultra-high efficiency
    • Precision thin metals and protective sleeves to ensure rotor reliability

    If you’re developing a high-performance electric machine, let’s discuss how we can help you achieve higher efficiency, higher power density, and longer service life.

    Contact us today for a consultation on your next high-speed magnetic rotor assembly project.

  • The Role of Magnets in Green Power Generation

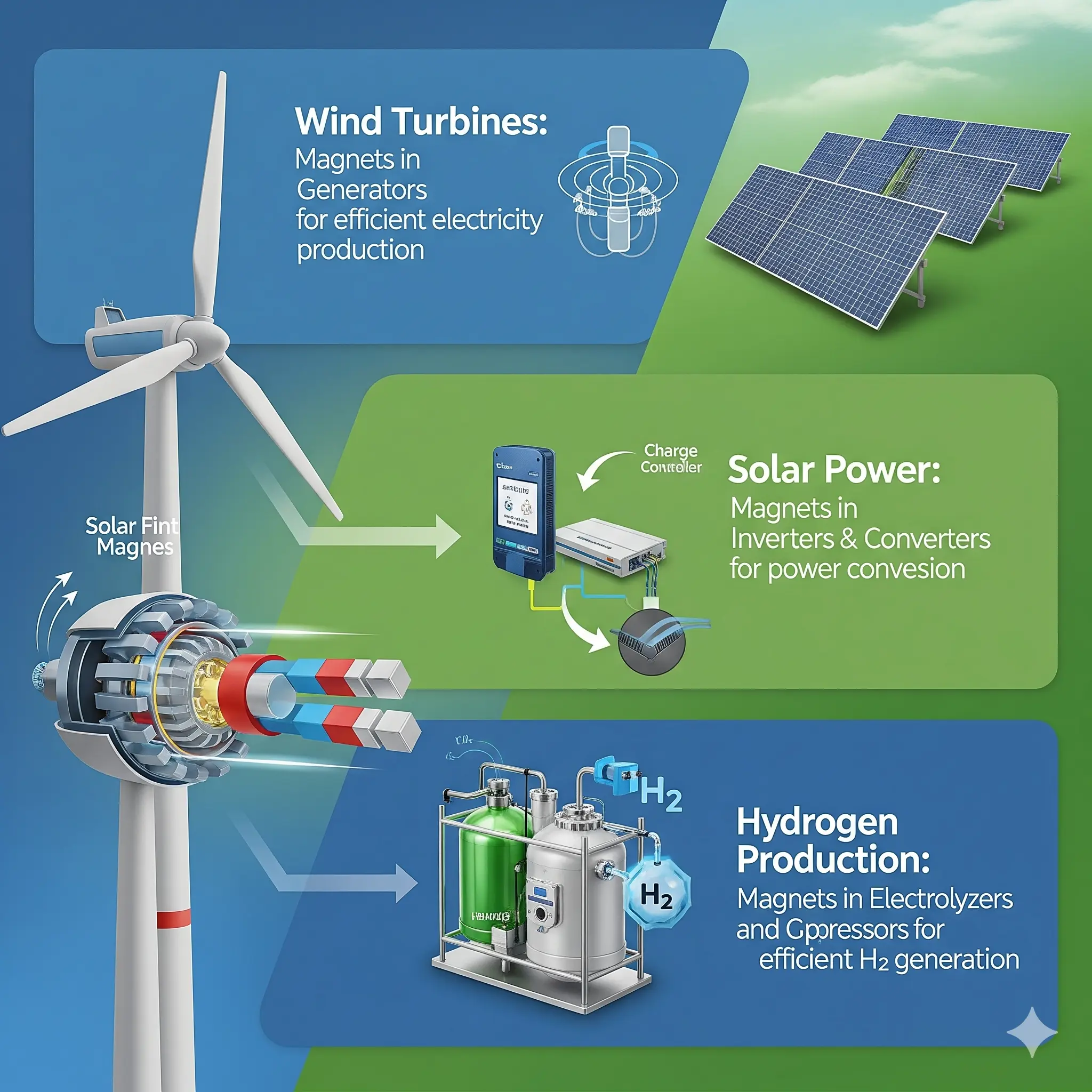

    The Role of Magnets in Green Power Generation

    With the rapid development of renewable energy, magnets—especially rare earth permanent magnets like NdFeB (neodymium iron boron) and SmCo—have become key components in many green power technologies. From wind turbines to solar inverters and hydrogen fuel cells, magnets help improve efficiency, reduce energy loss, and support the global transition to clean energy.

    Table of Contents

    Magnets in Wind Power Generation

    Permanent Magnet Direct Drive Wind Turbines

    Modern wind turbines increasingly use permanent magnet direct-drive or semi-direct-drive systems, where magnets replace traditional gearbox systems. Major benefits include:

    • Higher generation efficiency
    • Lower maintenance cost
    • Better performance in low wind speeds
    • Longer service life

    The permanent magnets provide a strong magnetic field, helping convert wind energy into electricity more efficiently.

    Converters and Control Systems

    Power converters in wind turbines use magnetic components like inductors and transformers, which rely on magnetic steel. High-quality magnetic materials improve conversion efficiency and ensure stable operation in variable wind conditions.

    the application of magnets in a wind turbine generator

    Magnets in Solar Photovoltaic Systems

    Inverters

    The solar inverter converts DC electricity from solar panels into usable AC electricity. Inductors and transformers in these inverters use magnetic steel. Using high-performance magnetic materials helps:

    • Increase power density
    • Reduce energy loss
    • Improve overall system efficiency

    Energy Storage Systems (ESS)
    In solar battery storage systems, magnets are used in:

    • Current sensors for monitoring battery flow
    • Position sensors in battery management systems (BMS)
      This ensures accurate control and safe operation of lithium battery packs.

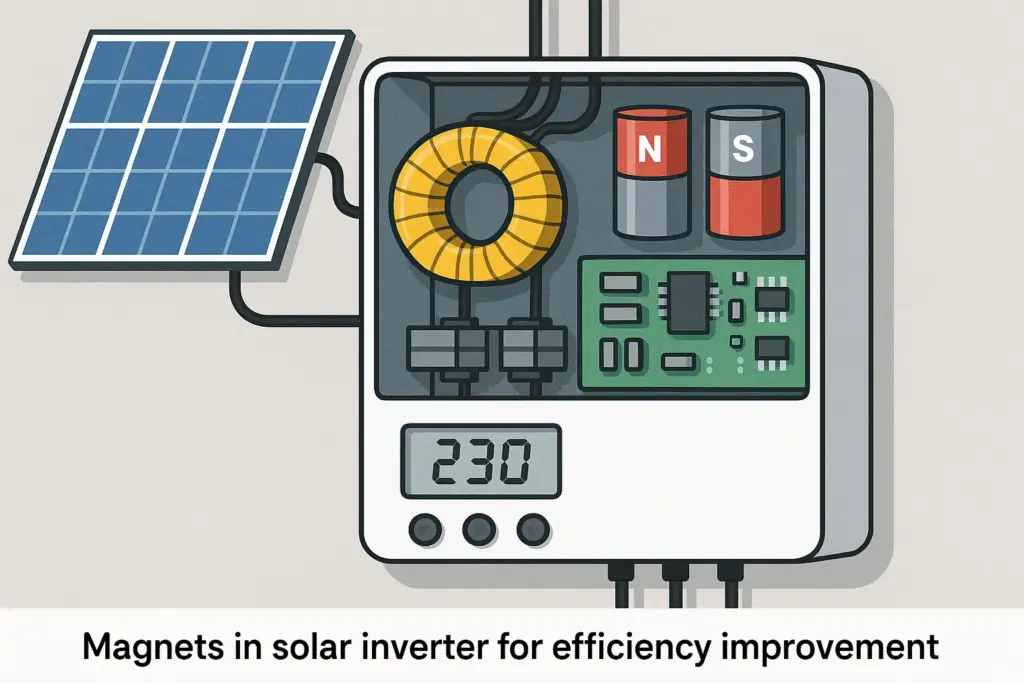

    Magnets in solar inverter for efficiency improvement

    Magnets in Hydrogen Fuel Cell Technology

    Hydrogen fuel cells depend on components that often contain magnetic alloys or use magnetic fields to control the fuel flow and monitor system operation. Magnets are utilized in:

    • Sensors
    • Electric pumps
    • Power conditioning devices

    Their presence helps enhance the performance and reliability of hydrogen-based clean energy solutions.

    New Energy Ships and Offshore Power

    In electric and hybrid marine vessels, especially those powered by renewable energy or battery systems, permanent magnet motors are used for propulsion. Benefits include:

    • High torque output
    • Lower noise (important for marine environments)
    • Improved energy conversion efficiency

    Conclusion

    Magnets are a foundation in many green energy technologies. Whether it’s wind turbines, solar PV, or hydrogen systems, magnetic materials make renewable energy generation more efficient, reliable, and scalable. As the world continues to pursue carbon neutrality, the demand for advanced magnetic materials will continue to grow in the renewable energy industry.

  • Choosing the Right Permanent Magnet Materials for Hall Sensors

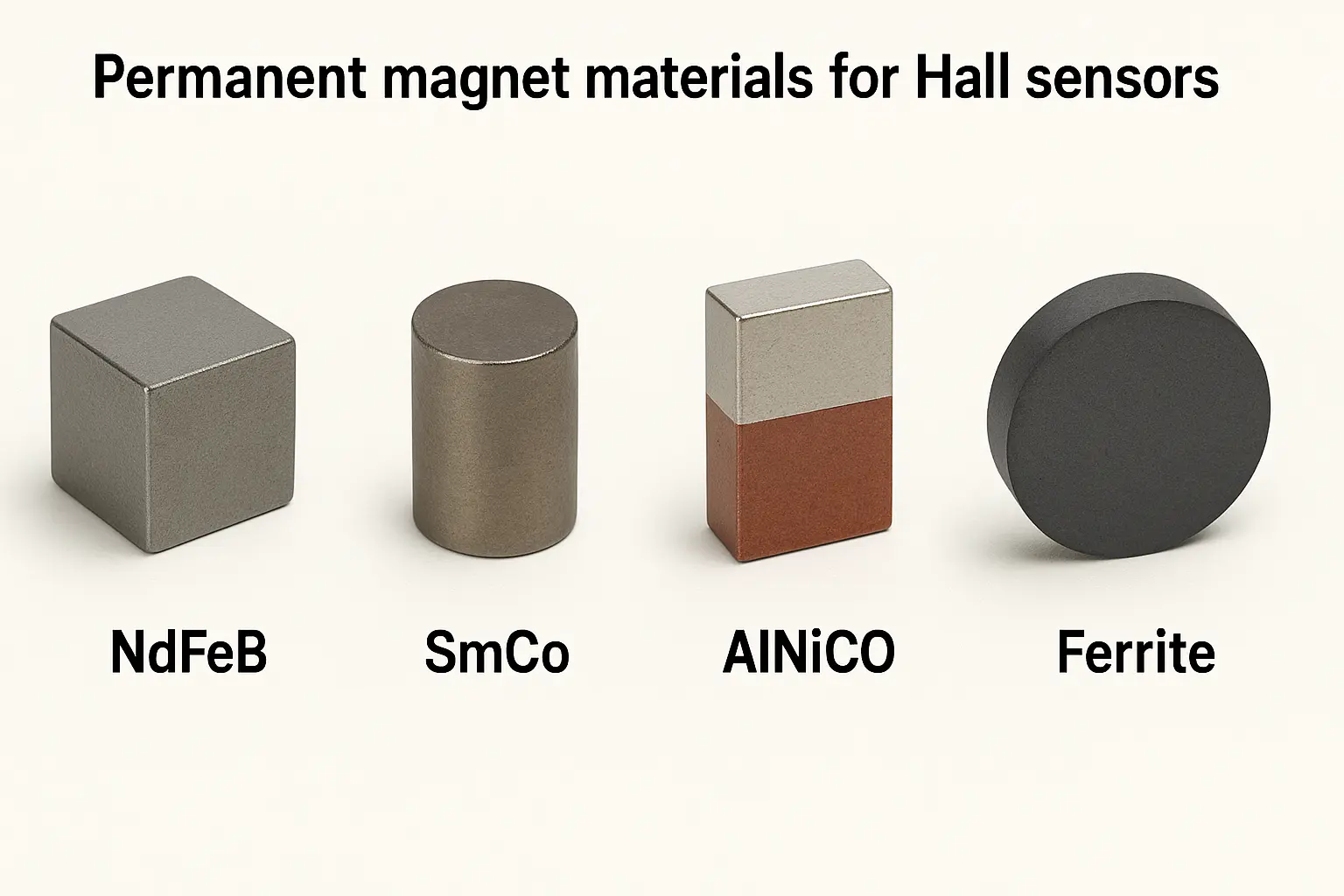

    Choosing the Right Permanent Magnet Materials for Hall Sensors

    At HS Magnet, a leading magnet manufacturer, we understand the critical role permanent magnets play in Hall sensor applications. Hall sensors, used for position detection, speed measurement, and current sensing, rely on a stable magnetic field to function effectively. Selecting the right permanent magnet material is key to optimizing sensor performance, reliability, and cost-efficiency. In this guide, we explore the most common permanent magnet materials—Neodymium Iron Boron (NdFeB), Samarium Cobalt (SmCo), Aluminum Nickel Cobalt (AlNiCo), and Ferrite—and their ideal applications in Hall sensors.

    Table of Contents

    Why Permanent Magnet Selection Matters for Hall Sensors

    Hall sensors operate based on the Hall effect, where a magnetic field generates a voltage that enables precise measurements. The choice of permanent magnet material directly impacts the sensor’s accuracy, durability, and suitability for specific environments. Factors like magnetic field strength, operating temperature, size constraints, and budget guide material selection. Let’s dive into the characteristics, advantages, and applications of each material.

    1. Neodymium Iron Boron (NdFeB) Magnets

    Features

    • Highest Magnetic Strength: NdFeB magnets offer the highest magnetic energy product, delivering powerful magnetic fields in compact sizes.
    • Ideal for Precision: Their high field strength supports high-precision applications in small spaces.

    Advantages

    • Provides a strong, stable magnetic field for accurate measurements.
    • Perfect for miniaturized, high-frequency, and high-precision sensors.

    Applications

    • Motor Speed Sensors: NdFeB magnets ensure accurate rotor speed detection in electric motors.
    • Angle and Position Sensors: Ideal for compact designs requiring precise angle or position tracking.
    • Automotive Electronics: Used in wheel speed sensors for reliable performance in demanding automotive systems.

    Why Choose NdFeB from HS Magnet?
    Our high-grade NdFeB magnets are engineered for maximum strength and durability, making them the top choice for cutting-edge Hall sensor applications.

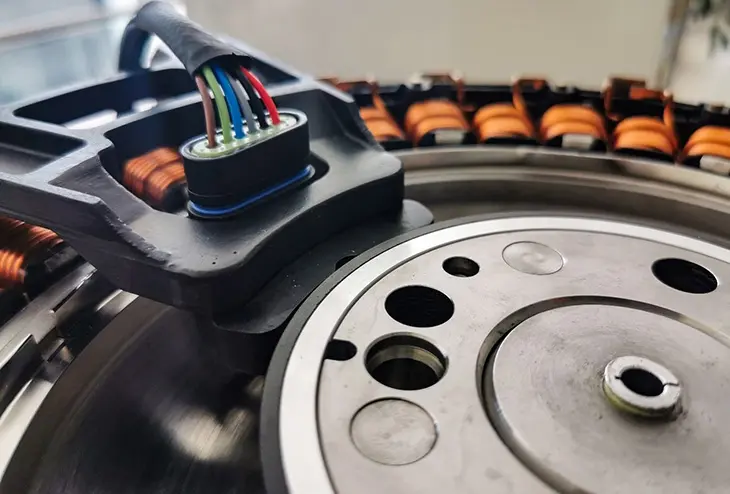

    NdFeB magnets in motor speed Hall sensors for precision

    2. Samarium Cobalt (SmCo) Magnets

    Features

    • Superior High-Temperature Performance: SmCo magnets maintain stability in extreme heat, outperforming NdFeB in high-temperature environments.
    • Strong Magnetic Field: While not as powerful as NdFeB, SmCo offers excellent magnetic stability.

    Advantages

    • Exceptional performance in temperatures up to 300°C.
    • High corrosion resistance for long-term reliability.

    Applications

    • Automotive Engine Sensors: SmCo magnets deliver consistent performance in high-heat engine environments.
    • Aerospace and Military: Trusted for high-precision sensors in extreme conditions.

    Why Choose SmCo from HS Magnet?
    Our SmCo magnets are crafted for superior thermal stability and corrosion resistance, ensuring reliable performance in the toughest environments.

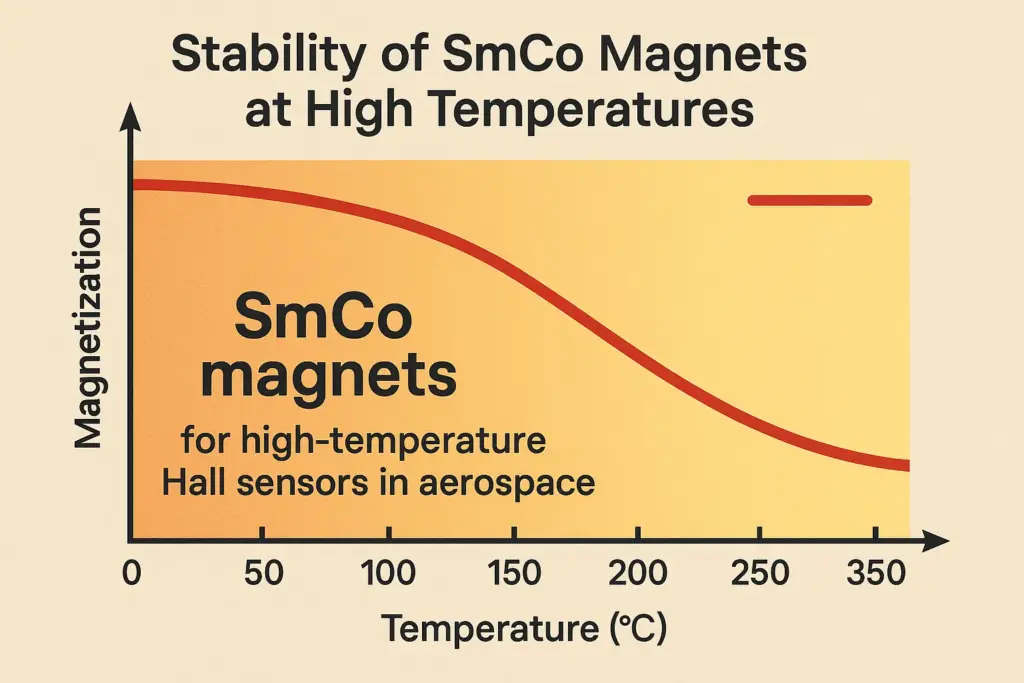

    SmCo magnets for high-temperature Hall sensors in aerospace

    3. Aluminum Nickel Cobalt (AlNiCo) Magnets

    Features

    • Stable Across Temperatures: AlNiCo magnets maintain magnetic consistency despite temperature fluctuations.
    • Moderate Magnetic Strength: Lower than NdFeB and SmCo but sufficient for many applications.

    Advantages

    • Excellent high-temperature stability, ideal for fluctuating conditions.
    • Cost-effective for budget-conscious projects.

    Applications

    • Home Appliances: Used in sensors for appliances like washing machines and refrigerators.
    • Low-to-Medium Field Applications: Suitable for position sensors in mechanical equipment.

    Why Choose AlNiCo from HS Magnet?
    Our AlNiCo magnets offer a cost-effective solution with reliable performance, perfect for applications requiring thermal stability.

    Close-up of guitar pickup magnets showing alnico rods and bar sizes.

    4. Ferrite Magnets

    Features

    • Low Magnetic Strength: Ferrite magnets provide moderate magnetic fields but are highly cost-effective.
    • Good Electrical Insulation: Ideal for electrical environments requiring insulation.

    Advantages

    • Affordable, making them ideal for mass-produced sensors.
    • Excellent corrosion resistance for challenging environments.

    Applications

    • Low-Cost Hall Sensors: Used in low-precision position detection for home appliances and automation systems.
    • Automotive Sensors: Cost-effective solution for electrical systems with moderate performance needs.

    Why Choose Ferrite from HS Magnet?
    Our Ferrite magnets are designed for affordability and reliability, making them a go-to choice for cost-sensitive applications.

    Ferrite arc magnets in small DC motor for toys and hobby projects applications.

    Key Considerations for Choosing Permanent Magnet Materials

    To select the ideal magnet for your Hall sensor, consider the following factors:

    1. Magnetic Field Strength: High-precision, compact applications benefit from NdFeB’s superior strength, while Ferrite suits lower-strength needs.
    2. Operating Temperature: SmCo and AlNiCo excel in high-temperature environments, while NdFeB may require coatings or modifications for heat resistance.
    3. Cost Budget: Ferrite and AlNiCo are budget-friendly, while NdFeB and SmCo are premium options for high-performance applications.
    4. Size and Weight: NdFeB’s high strength-to-size ratio is ideal for space-constrained designs.

    Why Partner with HS Magnet?

    As a trusted magnet manufacturer, HS Magnet offers a wide range of NdFeB, SmCo, AlNiCo, and Ferrite magnets tailored for Hall sensor applications. Our magnets are precision-engineered to meet your specific requirements, ensuring optimal performance and durability. Whether you need compact, high-strength NdFeB magnets for automotive sensors or cost-effective Ferrite magnets for consumer electronics, we’ve got you covered.

  • Performance advantages of samarium cobalt magnets

    Samarium cobalt (SmCo) magnets are high-performance rare-earth magnets widely used in industries that demand strength, temperature stability, and durability. Although they are slightly less powerful than neodymium (NdFeB) magnets, SmCo magnets excel in applications where high temperature, corrosion resistance, and long-term reliability are critical.

    In this article, we’ll explore the key performance advantages of SmCo magnets and why they are the preferred choice in many advanced technologies.

    Table of Contents

    1. High Magnetic Strength

    SmCo magnets offer a strong magnetic performance with an energy density of up to 32 MGOe (Sm2Co17 grade).

    • While not as strong as neodymium magnets, SmCo still provides excellent performance in demanding applications.
    • Their strength-to-size ratio allows for compact and efficient designs in high-tech devices.

    2. Exceptional Temperature Stability

    One of the biggest advantages of SmCo magnets is their ability to operate in extreme temperatures.

    • Performance range: -270°C to +350°C.
    • Low temperature coefficient ensures stable magnetic properties under extreme variations.
    • Resistant to demagnetization at high temperatures, unlike NdFeB magnets.

    👉 Ideal for aerospace, automotive, and high-temperature industrial applications.

    3. Excellent Corrosion Resistance

    SmCo magnets are naturally resistant to oxidation and corrosion.

    • No additional coatings or surface treatments are required.
    • Perfect for marine, chemical, and outdoor environments where exposure to moisture or chemicals is unavoidable.

    4. Superior Resistance to Demagnetization

    With high coercivity, SmCo magnets resist demagnetization from:

    • Strong opposing magnetic fields
    • Vibrations and shocks
    • Harsh working conditions

    This ensures stable long-term performance in critical applications.

    5. High Energy Product for Miniaturization

    SmCo magnets deliver strong magnetic energy in compact sizes, allowing device designers to:

    • Reduce component size
    • Save space
    • Improve performance without sacrificing reliability

    👉 Widely used in medical devices, precision instruments, and high-performance motors.

    6. Durability and Longevity

    Despite being brittle and hard to machine, SmCo magnets are:

    • Highly resistant to thermal degradation
    • Stable in harsh environments
    • Long-lasting, reducing maintenance and replacement costs

    7. Wide Range of Grades (SmCo5 vs Sm2Co17)

    SmCo magnets are available in two main types:

    • SmCo5: Higher magnetic strength, easier to magnetize, but less resistant to demagnetization.
    • Sm2Co17: Superior temperature stability and resistance, best for high-temperature applications.

    This flexibility allows engineers to select the right material for their needs.

    8. Non-Reactive and Environmentally Stable

    Unlike NdFeB magnets, SmCo magnets are less reactive to moisture and chemicals.

    • No protective coatings needed in most cases.
    • Reliable in long-term applications without risk of corrosion.

    9. Precision Engineering Applications

    The unique combination of magnetic strength, temperature stability, and corrosion resistance makes SmCo magnets indispensable in:

    • Aerospace & defense: Sensors, actuators, missile guidance systems
    • Medical devices: MRI machines, implants, surgical instruments
    • Electronics: RF isolators, precision motors, generators

    10. Excellent for High-Speed Applications

    SmCo magnets have low eddy current losses, making them perfect for:

    • High-speed electric motors
    • Generators
    • Turbines
    • Applications where energy efficiency and minimal heat generation are critical.

    Conclusion: Why Choose Samarium Cobalt Magnets?

    Samarium cobalt magnets may not be the strongest rare-earth magnets, but they outperform neodymium in temperature stability, corrosion resistance, and long-term reliability. Their ability to function in extreme environments makes them the magnet of choice for aerospace, medical, defense, and high-performance engineering industries.

    At HS Magnet, we manufacture and supply high-quality SmCo magnets (SmCo5 & Sm2Co17) tailored to your application needs. Contact us today to learn more about how SmCo magnets can improve your product performance.
