Magnets are an unsung hero in welding workshops. Whether for holding, aligning, or even assisting in advanced joining methods, magnets simplify welding operations, improve accuracy, and boost efficiency. In welding, magnets are used both as raw magnetic materials (inside machines or fixtures) and as finished magnetic tools designed for welders.
1. Why Magnets Are Essential in Welding
Welding often involves handling large or awkwardly shaped steel parts. Traditional clamps can be slow to set up, and even small misalignments can ruin a weld. Magnets provide:
- Quick fixation without drilling holes or tightening bolts
- Precise positioning at exact angles
- Hands-free operation, letting welders focus on the weld itself
2. Types of Magnets Used in Welding
Different magnet types are chosen based on strength, heat resistance, and cost:
- Neodymium Magnets (NdFeB): Extremely strong, compact, and ideal for holding heavy or large workpieces securely. Best for applications where maximum magnetic force is needed in a small space.
- Ferrite (Ceramic) Magnets: More affordable and heat resistant, suitable for lighter holding tasks or where cost is a concern.
- AlNiCo Magnets: Good temperature stability, often used in magnetic sensing or positioning inside welding machinery.
3. Magnetic Tools & Devices in Welding Operations

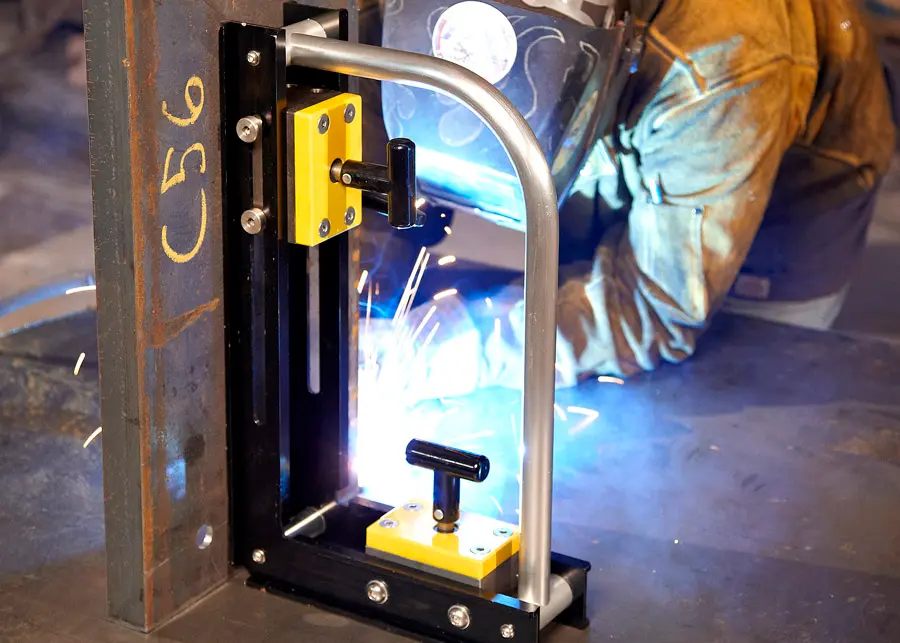

a. Magnetic Welding Clamps
Hold workpieces at 45°, 90°, or 135° angles without slipping. Perfect for tack welding frames, gates, or sheet metal structures.
b. Magnetic Angle Finders & Positioning Blocks
Allow precise setup of weld joints, reducing human error and ensuring square corners.
c. Magnetic Welding Tables
Tables with built-in magnets secure parts anywhere on the surface, making setups faster and more flexible.
d. Magnetic Torch & Rod Holders
Keep welding torches or filler rods in place, especially in tight or vertical positions.
e. Magnetic Fixtures for Distortion Control
Hold workpieces steady against thermal movement, preventing warping during long welds.
4. Advanced Magnet-Based Welding Methods
Magnetic Pulse Welding (MPW)
A solid-state welding technique where a powerful magnetic field accelerates metal pieces together at high speed, bonding them without melting. NdFeB magnets are key for generating the required electromagnetic force.
Robotic Welding Systems
In automated setups, magnets inside robotic grippers enable fast pickup, positioning, and release of steel components.
5. Why Neodymium Magnets Are Game-Changers in Welding
Neodymium magnets are preferred in many welding tools because they:
- Deliver maximum holding strength in compact designs
- Enable faster setups compared to mechanical clamps
- Maintain secure holding even for heavy or oddly shaped parts
- Improve automation efficiency in robotic welding
Conclusion
Magnets — whether ferrite, AlNiCo, or neodymium — are indispensable in modern welding operations. From basic angle clamps to advanced magnetic pulse welding, they make the work faster, safer, and more precise. And with the unmatched power of neodymium magnets, today’s welding shops can achieve efficiency and accuracy that were once impossible.
