High-speed magnetic rotor assemblies are the heart of many advanced electric machines — from electric vehicle motors to aerospace actuators. At HS Magnet, we work closely with motor designers to supply high-performance magnets and complete rotor assemblies that meet extreme speed, efficiency, and durability demands.
In this article, we’ll explain what magnetic rotors are, why the choice of magnet material is critical, and the most common magnetic materials used in high-speed rotor assemblies.

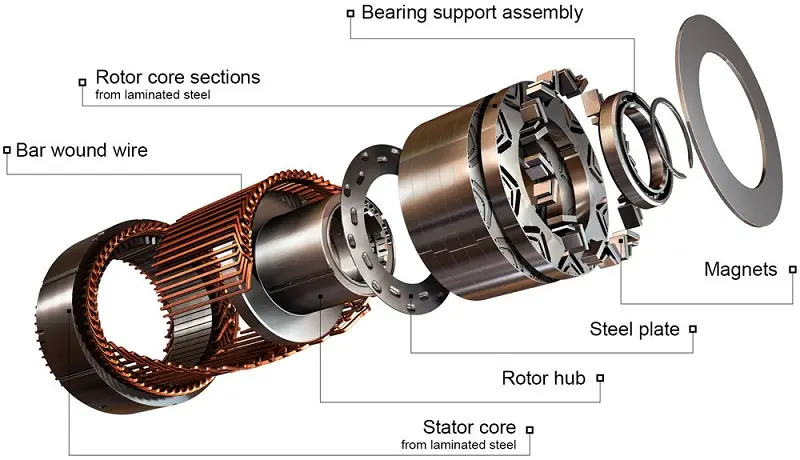

What is a Magnetic Rotor Assembly?
A magnetic rotor is the rotating component in a motor or generator that contains permanent magnets. When paired with a stator, the rotor’s magnetic field interacts with the stator’s windings to produce motion or generate electricity.
In high-speed magnetic rotor assemblies, the magnets must withstand:
- High rotational speeds — often exceeding 50,000 RPM
- High temperatures — due to electrical and mechanical losses
- Strong centrifugal forces — which can place stress on magnet bonds and sleeves
- Demanding efficiency requirements — to achieve high torque and power density in a compact size
The Role of Magnets in Rotor Performance
The magnet material determines:
- Magnetic field strength → affects torque and efficiency
- Temperature tolerance → critical for preventing demagnetization at high heat
- Corrosion resistance → important in harsh or humid environments
- Cost-effectiveness → impacts overall motor price
Choosing the right magnet is a balance of performance, environment, and budget.
Common Magnet Materials for High-Speed Rotors
1. Neodymium Iron Boron (NdFeB) Magnets
Key Features:
- Strongest commercially available permanent magnet material
- High remanence and coercivity
- Magnetic energy product over 50 MGOe
- Curie temperature: 310–400°C
- Available in high-temperature grades for demanding rotor designs
Applications:
- Electric vehicle drive motors
- CNC machine tool spindle motors
- Robotics joint actuators
- Aerospace auxiliary motors
Why Choose NdFeB: Ideal when maximum torque density and compact size are required.
2. Samarium Cobalt (SmCo) Magnets
Key Features:
- Magnetic energy product: 20–30 MGOe
- Exceptional temperature resistance (Curie temp: 700–800°C)
- Excellent corrosion resistance without coating
- Stable performance in extreme environments
Applications:
- Aerospace motors near jet engines
- Oilfield downhole motors
- High-speed industrial drives in hot environments
Why Choose SmCo: Best choice for high-temperature, corrosive, or vacuum environments where NdFeB may not survive.
3. Ferrite (Ceramic) Magnets
Key Features:
- Low cost and good chemical stability
- Magnetic energy product: 3–5 MGOe
- High electrical resistivity → reduced eddy current loss
- Naturally corrosion-resistant
Applications:
- Household appliance motors (fans, washing machines, vacuum cleaners)
- Cost-sensitive small high-speed motors
Why Choose Ferrite: Affordable and reliable for medium-performance, high-volume applications.
Advanced Magnet Configurations: Halbach Arrays
For maximum power density and efficiency, HS Magnet also designs Halbach array magnetic rotors. These arrangements concentrate magnetic flux on one side, improving motor performance while reducing weight and size.
Factors to Consider When Selecting Magnets for Rotor Assemblies
When designing or sourcing a magnetic rotor assembly, consider:
- Operating speed (RPM)
- Maximum working temperature
- Environmental exposure (moisture, chemicals, vacuum)
- Space constraints
- Required torque and efficiency
- Budget limitations
Our engineers can simulate performance and recommend the optimal magnet grade, coating, and mechanical structure for your application.
Partner with HS Magnet for Your Next Rotor Project
At HS Magnet, we supply:
- NdFeB, SmCo, and ferrite magnets in custom sizes and grades
- Complete high-speed magnetic rotor assemblies ready for integration
- Advanced Halbach array designs for ultra-high efficiency
- Precision thin metals and protective sleeves to ensure rotor reliability
If you’re developing a high-performance electric machine, let’s discuss how we can help you achieve higher efficiency, higher power density, and longer service life.
Contact us today for a consultation on your next high-speed magnetic rotor assembly project.
