Magnetic pumps, also known as mag-drive pumps, are essential in industries like chemical processing, pharmaceuticals, and water treatment. These pumps operate without mechanical seals, using magnetic couplings to transfer torque from the motor to the impeller. This sealless design prevents leaks, making them ideal for handling hazardous, corrosive, or high-temperature fluids. At the heart of these couplings are powerful permanent magnets, and one standout material is Samarium Cobalt (SmCo). In this post, we’ll explore why SmCo magnets are used in magnetic pumps, their advantages and disadvantages, and how they stack up against other common magnetic materials like Neodymium-Iron-Boron (NdFeB), Ferrite, and Alnico.
Why Are Samarium Cobalt Magnets Used in Magnetic Pumps?

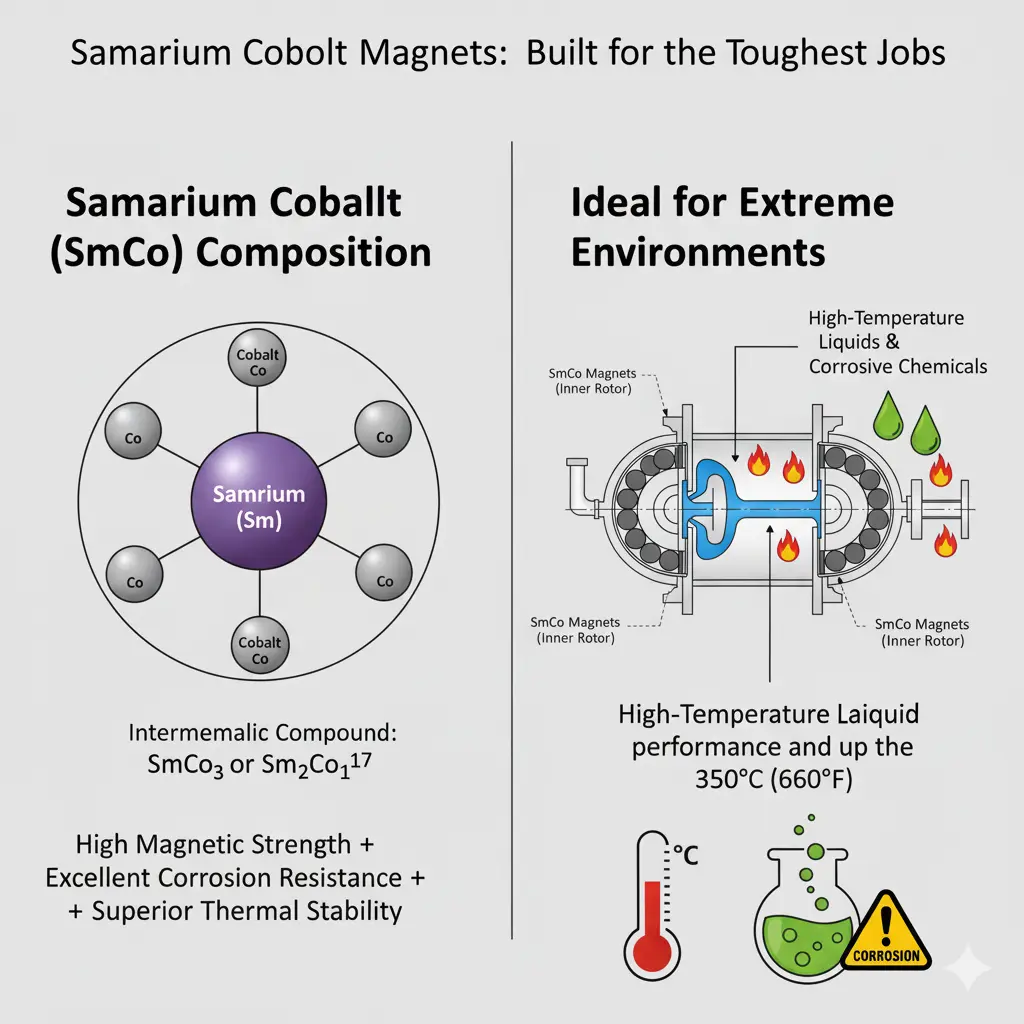

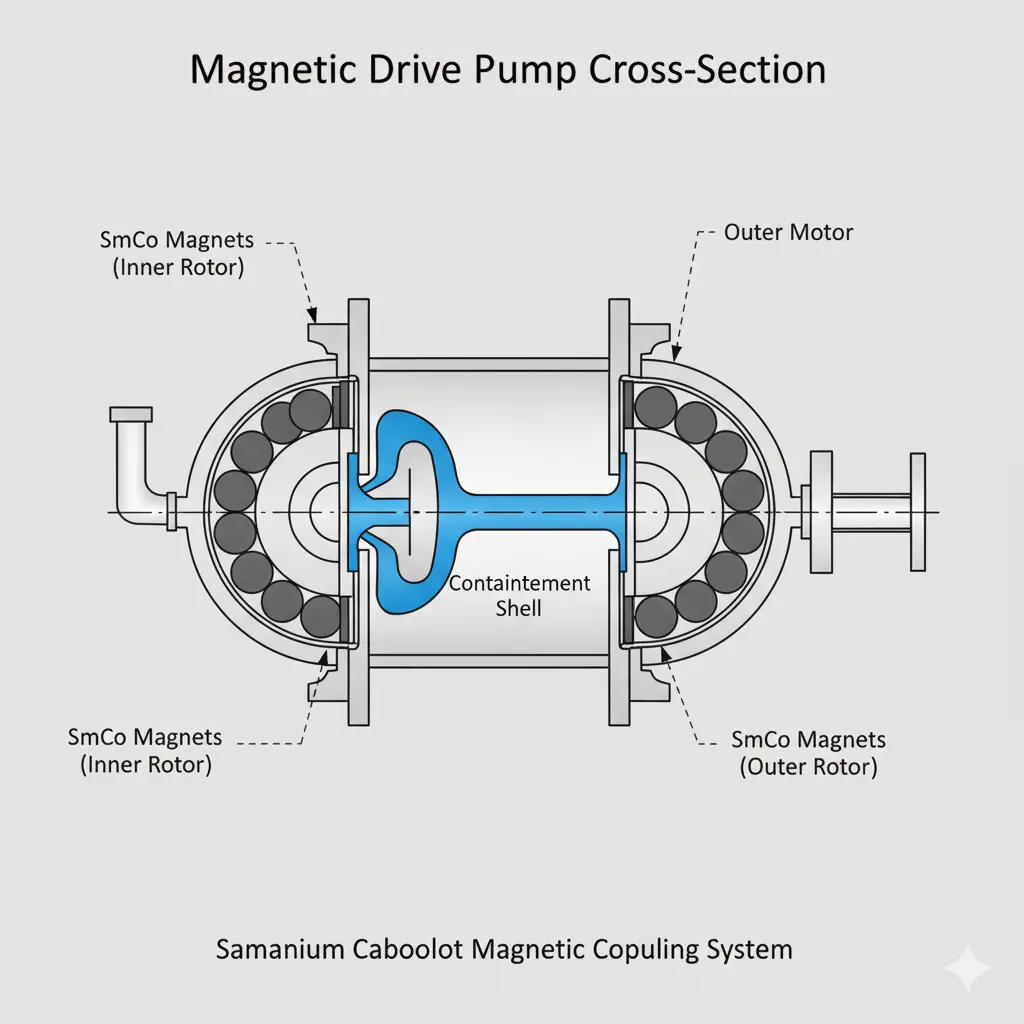

Samarium Cobalt magnets are a type of rare-earth magnet composed primarily of samarium and cobalt, often with traces of iron and copper. In magnetic pumps, they form part of the magnetic coupling system, where an outer magnet (driven by the motor) interacts with an inner magnet (connected to the impeller) across a containment shell. This non-contact transfer eliminates the need for seals, reducing maintenance and the risk of contamination.
SmCo magnets are particularly favored in mag-drive pumps for applications involving extreme conditions. They excel in environments with high temperatures (up to 350°C) and corrosive substances, where other magnets might fail due to demagnetization or degradation. For instance, in chemical plants pumping hot acids or in aerospace systems requiring reliability under thermal stress, SmCo provides stable magnetic performance without the need for additional protective coatings in many cases. Their high coercivity (resistance to demagnetization) ensures consistent torque transmission, even in compact designs where space is limited.
Advantages of Samarium Cobalt Magnets in Magnetic Pumps
SmCo magnets offer several key benefits that make them a go-to choice for demanding pump applications:
- Superior Temperature Resistance: They maintain magnetic strength at temperatures far higher than most alternatives, making them suitable for hot fluid handling without performance loss.
- Excellent Corrosion Resistance: Unlike some magnets that require coatings, SmCo inherently resists oxidation and chemical attack, ideal for corrosive environments in pumps.
- High Magnetic Stability and Coercivity: They resist demagnetization from external fields or shocks, ensuring long-term reliability in industrial settings.
- Compact and Lightweight Design: SmCo provides strong magnetic force relative to its size and weight, allowing for smaller, more efficient pump designs.
These advantages translate to lower downtime, reduced maintenance costs, and enhanced safety in magnetic pump operations.
Disadvantages of Samarium Cobalt Magnets in Magnetic Pumps
While powerful, SmCo magnets aren’t without drawbacks:
- High Cost: Due to the rarity of samarium and complex manufacturing, they are significantly more expensive than other options, which can increase the overall pump price.
- Brittleness: SmCo is prone to chipping or cracking if mishandled during assembly or operation, requiring careful installation.
- Slightly Lower Magnetic Strength: Compared to some rare-earth alternatives, SmCo has a marginally lower energy density, which might necessitate larger magnets for the same torque in certain designs.
- Limited Availability: Supply chain issues with rare-earth elements can lead to procurement challenges.
In magnetic pumps, these cons are often mitigated by the material’s longevity, but they may make SmCo less ideal for cost-sensitive or low-demand applications.
Comparison with Other Magnetic Materials
To understand where SmCo fits in, let’s compare it to other common permanent magnet materials used in magnetic pumps and couplings: Neodymium-Iron-Boron (NdFeB), Ferrite (Ceramic), and Alnico. The table below highlights key attributes based on magnetic properties, cost, and suitability for mag-drive pumps.
| Material | Magnetic Strength (Energy Density) | Temperature Resistance | Corrosion Resistance | Cost | Advantages in Mag-Drive Pumps | Disadvantages in Mag-Drive Pumps |
|---|---|---|---|---|---|---|
| Samarium Cobalt (SmCo) | High (22-32 MGOe) | Excellent (up to 350°C) | Excellent (inherent) | High | Stable in high-heat/corrosive fluids; high coercivity for reliable coupling | Brittle; expensive for large-scale use |
| Neodymium-Iron-Boron (NdFeB) | Very High (up to 52 MGOe) | Moderate (80-200°C) | Poor (needs coating) | Moderate | Strongest torque in compact designs; cost-effective for standard temps | Prone to corrosion/demagnetization in hot or harsh environments |
| Ferrite (Ceramic) | Low (3-5 MGOe) | Good (up to 250°C) | Excellent | Low | Cheap and corrosion-resistant for basic pumps | Weak strength requires larger sizes; lower efficiency |
| Alnico | Moderate (5-10 MGOe) | Excellent (up to 450°C) | Good | Moderate | High temp tolerance; easy to magnetize | Low coercivity leads to easy demagnetization; outdated for modern high-performance pumps |
From the comparison:
- Vs. NdFeB: SmCo is preferred for high-temperature or corrosive mag-drive pumps, while NdFeB wins in strength and cost for ambient conditions. NdFeB is more common overall due to its power-to-cost ratio but often needs protective coatings.
- Vs. Ferrite: SmCo offers far superior strength and stability, making it better for demanding pumps, though Ferrite is a budget-friendly alternative for less critical applications.
- Vs. Alnico: Both handle high temps, but SmCo’s higher coercivity and strength make it more reliable for modern magnetic couplings; Alnico is rarely used today due to its lower performance.
Ultimately, the choice depends on the pump’s operating environment—SmCo shines where reliability under stress is paramount.
Conclusion
Samarium Cobalt magnets play a crucial role in enhancing the performance and safety of magnetic pumps, especially in challenging industrial settings. Their ability to withstand high temperatures and corrosion makes them indispensable, despite higher costs and brittleness. When compared to NdFeB, Ferrite, or Alnico, SmCo strikes a balance for applications where failure isn’t an option. If you’re designing or upgrading a mag-drive pump system, consider consulting with magnet experts to tailor the material to your needs. For more insights on advanced materials in pumping technology, stay tuned to our blog!
