Applications of Ferrite Arc Magnets: Uses, Advantages, and Disadvantages

Ferrite arc magnets, also known as ceramic arc magnets, are affordable, curved-shaped magnets made from iron oxide and other metallic compounds. Their arc design concentrates the magnetic field, making them ideal for applications requiring a focused force in a compact form. Commonly used in low-power devices, education, and DIY projects, these magnets offer a budget-friendly alternative to stronger types like neodymium. In this guide, we’ll explore their key applications, advantages, and limitations to help you decide if they’re right for your needs.

Key Applications

Motors and Rotating Devices

The curved shape of ferrite arc magnets excels in generating concentrated magnetic fields, making them suitable for small-scale motors and rotating mechanisms:

• Small DC Motors: They’re commonly used in toys, hobby projects, and electronic components like fans or pumps. For example, in a toy car, the arc magnet helps drive the motor efficiently without needing high power.
• Magnetic Stirrers: In laboratories or home experiments, rotating ferrite arc magnets create a spinning magnetic field to mix liquids in sealed containers, ideal for small-scale chemical or biological tasks.

Sensor and Detection Uses

With distinct north and south poles, ferrite arc magnets are great for basic sensing and switching applications:

• Proximity Sensors: They can detect nearby ferrous objects by changes in the magnetic field, useful in simple automation like door alarms or object counters.
• Reed Switches: These magnets trigger electrical contacts in reed switches, commonly found in security systems, light switches, or basic circuits.

Educational and Household Applications

Ferrite arc magnets are popular for hands-on learning and everyday fixes due to their simplicity and safety:

• Science Experiments: Perfect for demonstrating magnetism concepts in schools or at home, such as showing attraction/repulsion or building simple compasses.
• Fixing Small Objects: Use them to hold lightweight ferrous items, like notes on a refrigerator, tools in a workshop, or decorations on metal surfaces.
• Magnetic Door Latches: Their attraction provides a simple, non-mechanical latch for cabinets, light furniture, or enclosures, offering easy installation and reliability.

Other Specialized Uses

While ferrite magnets aren’t the strongest, they have niche roles in low-demand scenarios:

• Low-Power Imaging (Limited): In experimental or very low-field setups (not standard medical MRI machines, which require much stronger magnets), they might be used for basic magnetic resonance applications. Note: For professional imaging, rare-earth magnets are preferred.
• Speakers (Limited): They’re occasionally found in affordable, low-fidelity speakers for voice coils, though neodymium magnets are more common for better performance.

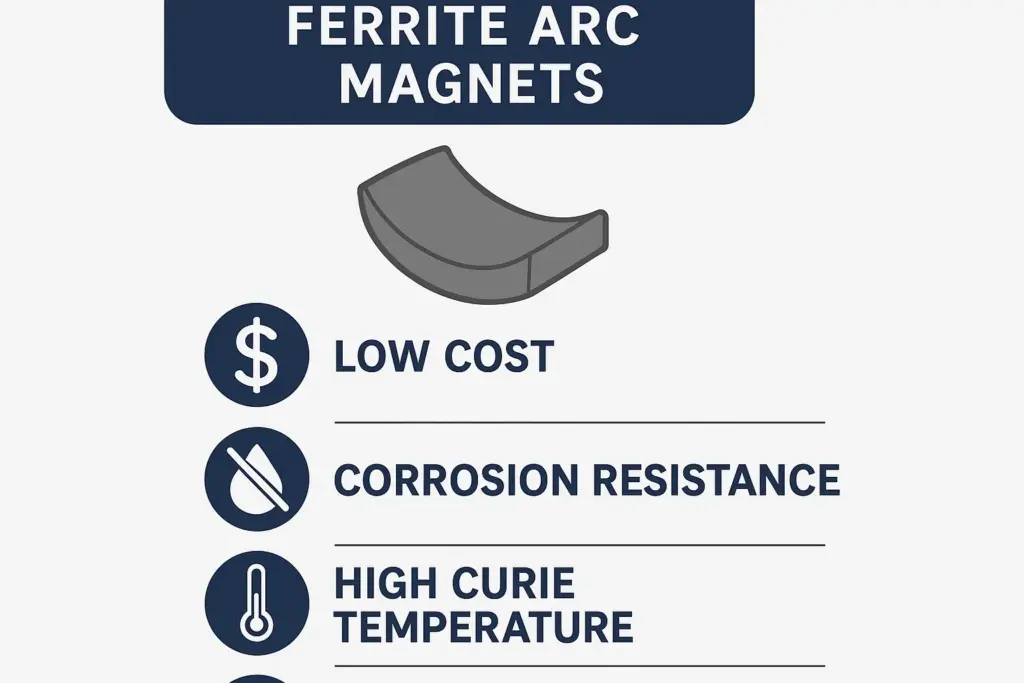

Advantages of Ferrite Arc Magnets

Ferrite arc magnets stand out for their practicality in cost-sensitive projects:

• Low Cost: Made from abundant materials, they’re significantly cheaper than neodymium or samarium cobalt magnets, often costing just a fraction per unit.
• Lightweight: Weighing less than metal-based alternatives, they’re easy to handle and integrate into portable devices.
• Corrosion Resistance: Highly resistant to rust and environmental degradation, making them suitable for humid or outdoor uses without protective coatings.
• Ease of Manufacturing: The curved shape is simple to produce, allowing for custom sizes and widespread availability.
• Temperature Tolerance: They operate effectively up to 250-300°C, outperforming some plastics in moderate heat environments.

Disadvantages of Ferrite Arc Magnets

Despite their benefits, these magnets have limitations that may require alternatives for demanding applications:

• Weaker Magnetic Strength: With a typical field strength of 500-4,000 Gauss, they’re less powerful than neodymium magnets (up to 14,000 Gauss), limiting use in high-force scenarios.
• Brittleness: Prone to chipping, cracking, or shattering if dropped or impacted, so handle with care and avoid mechanical stress.
• Lower Temperature Resistance in Extremes: While stable in moderate heat, they demagnetize above 350°C, unlike alnico magnets that handle higher temperatures.
• Limited Customization: Not as versatile in extreme shapes or strengths compared to rare-earth options.

Final Thoughts

Overall, ferrite arc magnets are an excellent choice for basic, low-cost applications in education, home projects, and low-power devices. Their clear poles, affordability, and durability make them ideal for beginners or budget-conscious users. If your project demands stronger fields or higher durability, consider upgrading to neodymium or alnico alternatives. Have you used ferrite arc magnets in a project? Share your tips in the comments below!
