Comprehensive Guide to Magnetic Pumps: Applications, Working Principle, and Key Advantages

In the world of industrial pumping solutions, magnetic pumps (also known as magnetic drive pumps) stand out for their leak-proof design and high efficiency. If you’re in the chemical, pharmaceutical, or environmental sectors and searching for a reliable way to handle hazardous fluids without the risk of leaks, this guide is for you. We’ll dive into the applications of magnetic pumps, their working principle, and why they outperform traditional centrifugal pumps. Whether you’re an engineer, procurement specialist, or industry beginner, understanding magnetic pump technology can help you make informed decisions for safer and more efficient operations.

What is a Magnetic Pump? Structure and Wide-Ranging Applications

A magnetic pump is an innovative centrifugal pump that eliminates the need for mechanical seals, making it ideal for transporting corrosive, toxic, or flammable liquids. It consists of three main components:

• The Pump Body: Houses the impeller and handles the fluid flow.

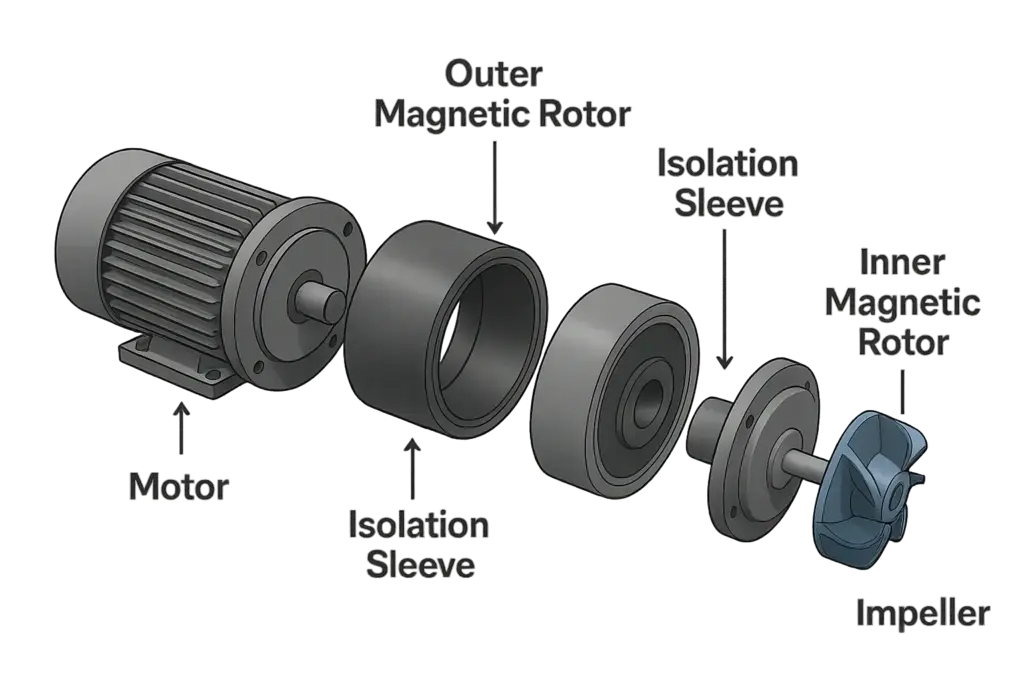

• The Magnetic Actuator: The heart of the system, featuring an outer magnetic rotor, an inner magnetic rotor, and a non-magnetic isolation sleeve.
• The Electric Motor: Provides the driving force.

The magic happens when the motor rotates the outer magnetic rotor. The magnetic field passes through the air gap and non-magnetic materials, synchronously driving the inner magnetic rotor connected to the impeller. This contactless power transmission converts dynamic seals into static ones, completely sealing the pump shaft and inner rotor within the pump body and isolation sleeve.

Why Choose Magnetic Pumps? Key Applications

Magnetic pumps are widely used in industries where safety and reliability are paramount:

• Chemical and Refining Industries: Prevent leaks of flammable, explosive, toxic, or harmful media, reducing safety hazards and ensuring worker health.
• Pharmaceutical and Food Processing: Handle sensitive fluids without contamination risks.
• Environmental and Water Treatment: Manage corrosive wastewater or chemicals efficiently.
• Oil and Gas: Transport volatile substances with zero emissions.

By eliminating issues like “running, emitting, dripping, and leaking,” magnetic drive pumps promote safer production environments and comply with strict environmental regulations. If you’re dealing with hazardous materials, investing in a magnetic pump can significantly cut down on maintenance costs and downtime.

How Does a Magnetic Pump Work? Detailed Working Principle

The working principle of a magnetic pump revolves around magnetic coupling, a clever way to transmit torque without physical contact. Here’s a step-by-step breakdown:

1. Magnet Arrangement: Both the inner and outer magnetic rotors are equipped with n pairs of magnets (where n is an even number), arranged to form a fully coupled magnetic system.

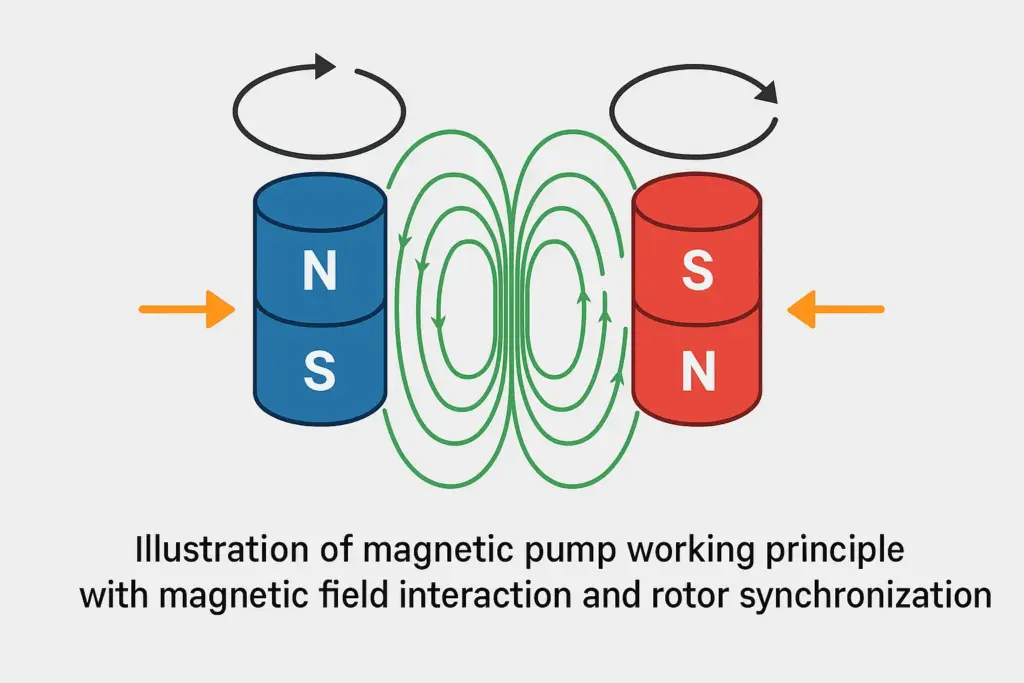

2. Magnetic Field Interaction: When the outer rotor (driven by the motor) rotates, the magnetic field penetrates the isolation sleeve and air gap, pulling the inner rotor along synchronously.
3. Energy Dynamics:
   • When opposite magnetic poles align (displacement angle Φ = 0), the system’s magnetic energy is at its lowest.
   • As poles rotate toward the same polarity (Φ = 2π/n), magnetic energy peaks due to repulsion.
   • Once external force is removed, the magnets naturally return to the low-energy state, causing the rotor to rotate and drive the impeller.

This synchronous, frictionless motion ensures smooth operation without wear and tear. In essence, magnetic pumps use magnetic forces to achieve contactless torque transmission, making them perfect for high-risk applications.

Advantages of Magnetic Pumps Over Traditional Centrifugal Pumps

Compared to conventional pumps with mechanical or packing seals, magnetic pumps offer superior benefits that enhance efficiency, safety, and longevity:

• Zero Leakage: The static seal design completely eliminates fluid leaks, protecting against environmental contamination and health risks.
• No Lubrication Needed: Operates without independent lubrication or cooling water, reducing energy consumption and operational costs.
• Synchronous Drive: Shifts from coupling transmission to contactless synchronous driving, minimizing friction, power loss, and vibration. This results in higher efficiency and a damping effect that shields the motor from pump vibrations (and vice versa).
• Overload Protection: During overloads, the inner and outer rotors slip relative to each other, safeguarding the motor and pump from damage.
• Low Maintenance: With no seals to replace, downtime is minimized, leading to longer service life and reduced repair expenses.

In summary, magnetic pumps provide a reliable, efficient alternative for demanding industrial environments. Their ability to handle aggressive media without leaks makes them a top choice for modern manufacturing.

Final Thoughts: Is a Magnetic Pump Right for Your Needs?

If you’re looking to upgrade your pumping system for better safety and performance, magnetic pumps are worth considering. They not only solve common issues with traditional pumps but also align with sustainability goals by preventing leaks and reducing energy use.

For more insights on magnetic pump selection, installation tips, or comparisons with other pump types, feel free to explore our related articles or contact HSmagnet a specialist. Have questions about magnetic drive pump applications? Drop a comment below—we’d love to hear from you!
