A magnetic switch is an electrical device that opens or closes its contacts under the influence of a magnetic field. When exposed to a magnetic field, the switch remains closed; when the field is removed, it opens. These switches are widely used for automation, safety, and industrial control due to their reliability and simple design.
Types of Magnetic Switches
Reed Switch
The reed switch is the most common type. It consists of sealed contact plates enclosed in a glass tube filled with inert gas, preventing corrosion and ensuring long service life. Reed switches are highly sensitive, inexpensive, and nearly inertial, making them fast and precise.
Hall Effect Switch
Hall effect switches use the Hall principle to detect magnetic fields and measure their strength. By sensing changes in voltage caused by magnetic flux, they provide accurate position detection and are widely used in advanced automation and sensing applications.
Electromechanical Relays
Some magnetic switches function as relays, controlling larger electrical loads with minimal wear since there are no complex moving parts exposed to the environment.
Key Features
- Reliable operation in harsh environments with dirt, humidity, and dust
- Stable switching point with high reproducibility (error as low as 0.01 mm)
- Flexible installation in any position
- Operation without external power supply (bistable versions available)
- Suitable for extreme temperature ranges from -200 °C to +200 °C
Industrial Applications
Magnetic switches are essential in industries where accuracy, durability, and non-contact sensing are critical. Typical applications include:
- Automation & Machinery: Position indicators for valves, dampers, and sliders
- Process Monitoring: Control of machine tools, textile and printing equipment
- Measurement Systems: Piston stroke detection, vibration control in centrifuges, and resonant conveyors

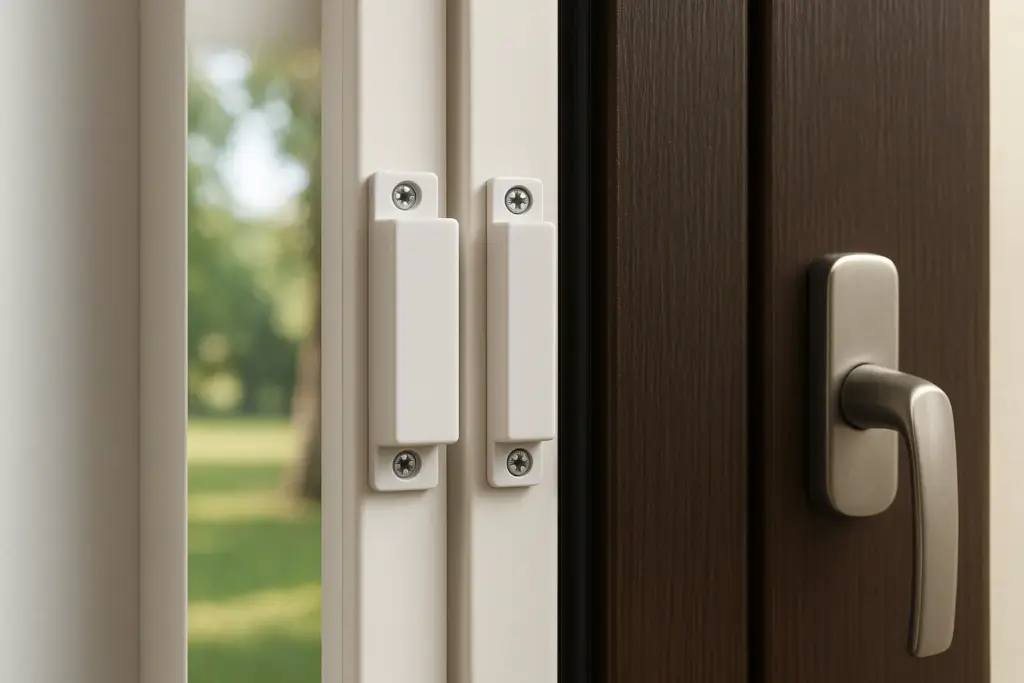

- Safety Devices: Window and door magnetic switches for security systems
Conclusion
With their precision, long lifespan, and ability to function in extreme conditions, magnetic switches continue to play a vital role in modern automation and industrial control systems.
